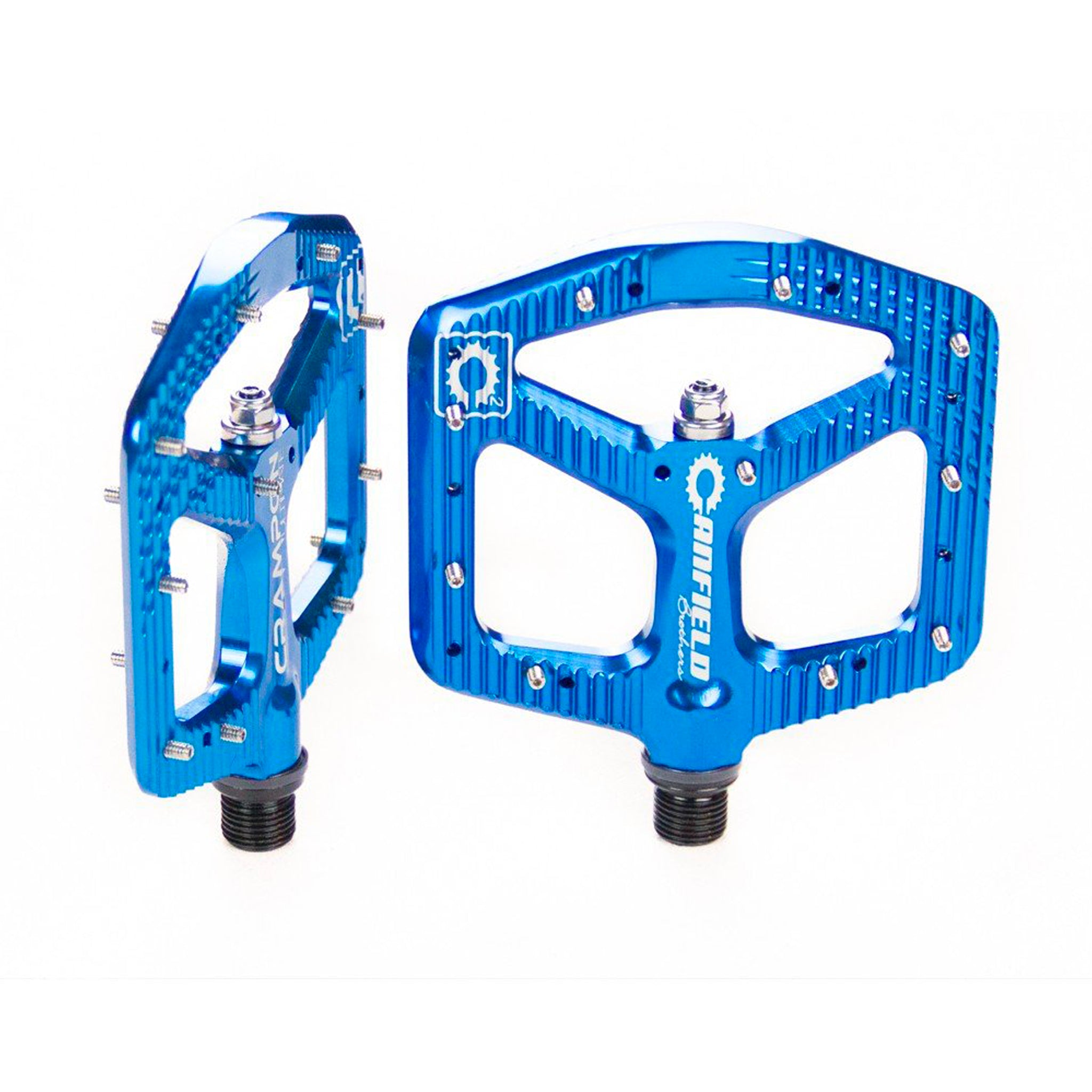

Crampon Ultimate Pedals
The original ultra-thin flat pedal evolved, the Canfield Bikes Crampon Ultimate is our thinnest platform, featuring patented convex shape, ultra-thin leading edges and double-sided pins.
Features:
342 grams
Thin 6mm front impact edges
106mm x 106mm wide platforms
Polished, anodized finish
DU bushings
Chromoly axle
Replaceable dual-sided pins
Patented convex shape
BREAK-IN PERIOD: It is normal for Canfield Crampon pedals to feel “stiff” when new or after a rebuild, especially compared to the used, worn-out pedals they are replacing. Pedals will break in and spin more freely after a few rides.
SERVICE PARTS for Crampon Ultimate Pedals
Pedal FAQ
$159
Crampon Mountain Pedals
The Crampon Mountain shares many of the features that make the Crampon Ultimate one of the best pedals on the market, including the patented convex shape, ultra-thin 6-millimeter leading edges and double sided pins for easy removal, combined with a fresh new look, an even larger 112-millimeter by 106-millimeter platform and virtually maintenance free internals that utilizes a bushing at the axle side and stacked bearings at the end internally.
Features:
398 grams
Thin 6mm front impact edges
106mm x 112mm wide platforms
Polished, anodized finish
Hybrid sealed bearings/DU bushing system
Chromoly axle
Replaceable dual sided pins, (allen key on both sides)
Patented convex shape
BREAK-IN PERIOD: It is normal for Canfield Crampon pedals to feel “stiff” when new or after a rebuild, especially compared to the used, worn-out pedals they are replacing. Pedals will break in and spin more freely after a few rides.
SERVICE PARTS for Crampon Mountain Pedals
Pedal FAQ
$159
Canfield Bikes Crampon ULT and MAG Pedal Service Parts
Replacement Parts for the Crampon Ultimate and Magnesium Pedals (Click here for Crampon Mountain service parts).
Please select the parts you need in the dropdown menu.
Rebuild Kit includes inner DU bushing, outer DU bushing, washer, spindle spring, spring spacer and spring cover for both left and right pedals. Does not include spindles or nuts.
Spindles sold individually. Choose drive side (right side)* or non-drive side (left side). Nuts included.
*Note: end nut is REVERSE thread on drive side (right side) spindle
Spindle Nuts are available separately (without spindle) and sold individually for drive (reverse thread) and non-drive side (standard thread) pedals.
Spindle Springs now available separately! Will add tension back into your pedals so you can refresh these pedals without a full rebuild. Add grease to the spindle when replacing. Sold as a pair (one per pedal).
Replacement Pins• 4mm pins fit all current Crampon pedals. Pedals with 4mm pins use a 2mm allen wrench to install or remove the pins. • 1/8" pins fit older Crampon pedals. Pedals with 1/8" pins use a 1.5mm allen wrench to install or remove the pins.• 'Mud' pins are 2mm longer than standard pins for extra grip (a dab of blue thread locker is recommended)• Bag of 20 pins
If you are unsure which pedals you have, what size pins you need or which parts you need, please contact us for assistance.
$1.59
1.79
Canfield Bikes Crampon MTN Pedal Service Parts
Replacement Parts for the Crampon Mountain Pedals (click here for Crampon Ultimate and Crampon Magnesium service parts).
Please select the parts you need in the dropdown menu.
Rebuild Kit includes all parts pictured for both left and right pedals. Does not include spindles.
Spindles sold individually. Choose drive side (right side)* or non-drive side (left side). Nuts included.
*Note: end nut is REVERSE thread on drive side (right side) spindle
Spindle Nuts are available separately (without spindle) and sold individually for drive (reverse thread) and non-drive side (standard thread) pedals. 8mm Thin-Wall Socket Required: Crampon Mountain require an 8mm thin-wall socket for service (available in the dropdown menu).
Replacement Pins• 4mm pins fit all current Crampon pedals. Pedals with 4mm pins use a 2mm allen wrench to install or remove the pins. • 1/8" pins fit older Crampon pedals. Pedals with 1/8" pins use a 1.5mm allen wrench to install or remove the pins.• 'Mud' pins are 2mm longer than standard pins for extra grip (a dab of blue thread locker is recommended)• Bag of 20 pins
If you are unsure which pedals you have, what size pins you need or which parts you need, please contact us for assistance.
$1.59
1.79
Canfield Bikes Crampon Classic Pedal Service Parts
Replacement Parts for the Crampon Classic Pedals (discontinued)
Please select the parts you need in the dropdown menu.
Spindles: sold individually. Choose drive side (right side)* or non-drive side (left side). Nuts included.
Gen. 1: Platforms have bump over spindle at the end of the pedal body.
Gen. 2: Platforms do NOT have a bump in the body over the spindle.
*Note: end nut is REVERSE thread on drive side (right side) spindle
Bearings: Three bearings per pedal/spindle (available for Gen. 2 only)
Replacement Pins:• 4mm pins use a 2mm allen wrench to install or remove the pins. • 1/8" pins use a 1.5mm allen wrench to install or remove the pins.• 'Mud' pins are 2mm longer than standard pins for extra grip (a dab of blue thread locker is recommended)• Bag of 20 pins
If you are unsure which pedals you have, what size pins you need or which parts you need, please contact us for assistance.
$8
9
