29" WHEELS // 138mm REAR // 140/150mm FRONT
There’s a party on the trails and you’re invited. The Tilt is an efficient all-rounder that climbs like a mountain goat with a meth habit. But make no mistake—like any bike with a skull on the headtube, it’s ready to party when gravity takes over.
GEO & SIZING
|
|
SMALL |
MEDIUM |
LARGE |
XL |
|
Top Tube Length (Effective) |
566mm |
593mm |
620mm |
646mm |
|
Reach |
425mm |
450mm |
475mm |
500mm |
|
Front Center |
746mm |
773mm |
800mm |
827mm |
|
Stack |
615mm |
620mm |
624mm |
629mm |
|
Standover |
697mm |
730mm |
762mm |
779mm |
|
Wheel Base |
1,170mm |
1,198mm |
1,225mm |
1,252mm |
|
Head Tube Angle* |
65° |
65° |
65° |
65° |
|
Head Tube Length |
110mm |
115mm |
120mm |
125mm |
|
Seat Tube Angle (Effective) |
77° |
77° |
77° |
77° |
|
Seat Tube Angle (Actual) |
69.2° |
69.2° |
69.2° |
69.2° |
|
Seat Tube Length |
380mm |
420mm |
460mm |
490mm |
|
Chainstay Length |
425mm |
425mm |
425mm |
425mm |
|
Bottom Bracket Height (Approx.)** |
343mm |
343mm |
343mm |
343mm |
|
Bottom Bracket Drop |
32mm |
32mm |
32mm |
32mm |
|
Rider Height*** |
5'2"-5'7" |
5'5"-5'11" | 5'9"-6'3" | 6'1"-6'6" |
FEATURES
• 29” Trail/All-Mountain
• Patented Canfield Balance Formula™ Suspension
• Internal cable routing
• Forged clamshell bottom bracket assembly
• Redesigned rear-triangle with forged one-piece vertical stays
• One-piece upper and lower links
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
FRAME SPECS
• 7005 aluminum with 7075 T6 CNC links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-138mm travel 210mm x 55mm (20mmX8mm/40mmX8mm hardware)
• Recommend fork length: 130mm – 150mm
• Tapered Headtube 44mm upper/56mm lower
• Recommended fork offset: 44mm
• 15mm pivot bearings (6902 Max)
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180mm
• Bottom bracket: 73mm threaded
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.6 pounds
-Frame w/ shock: 8.9 pounds
-Complete (carbon wheels, air shock/fork): 31.8 pounds

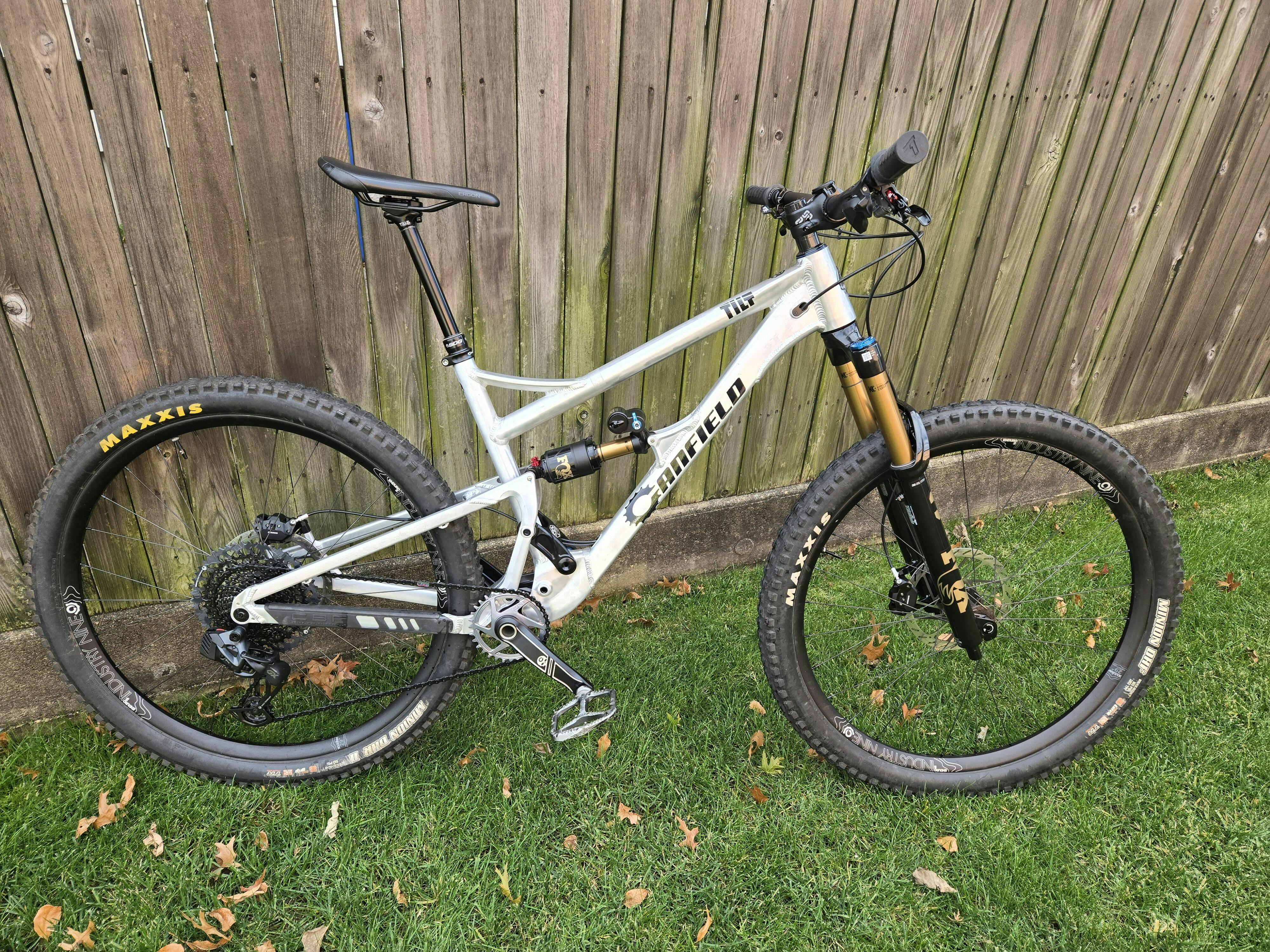

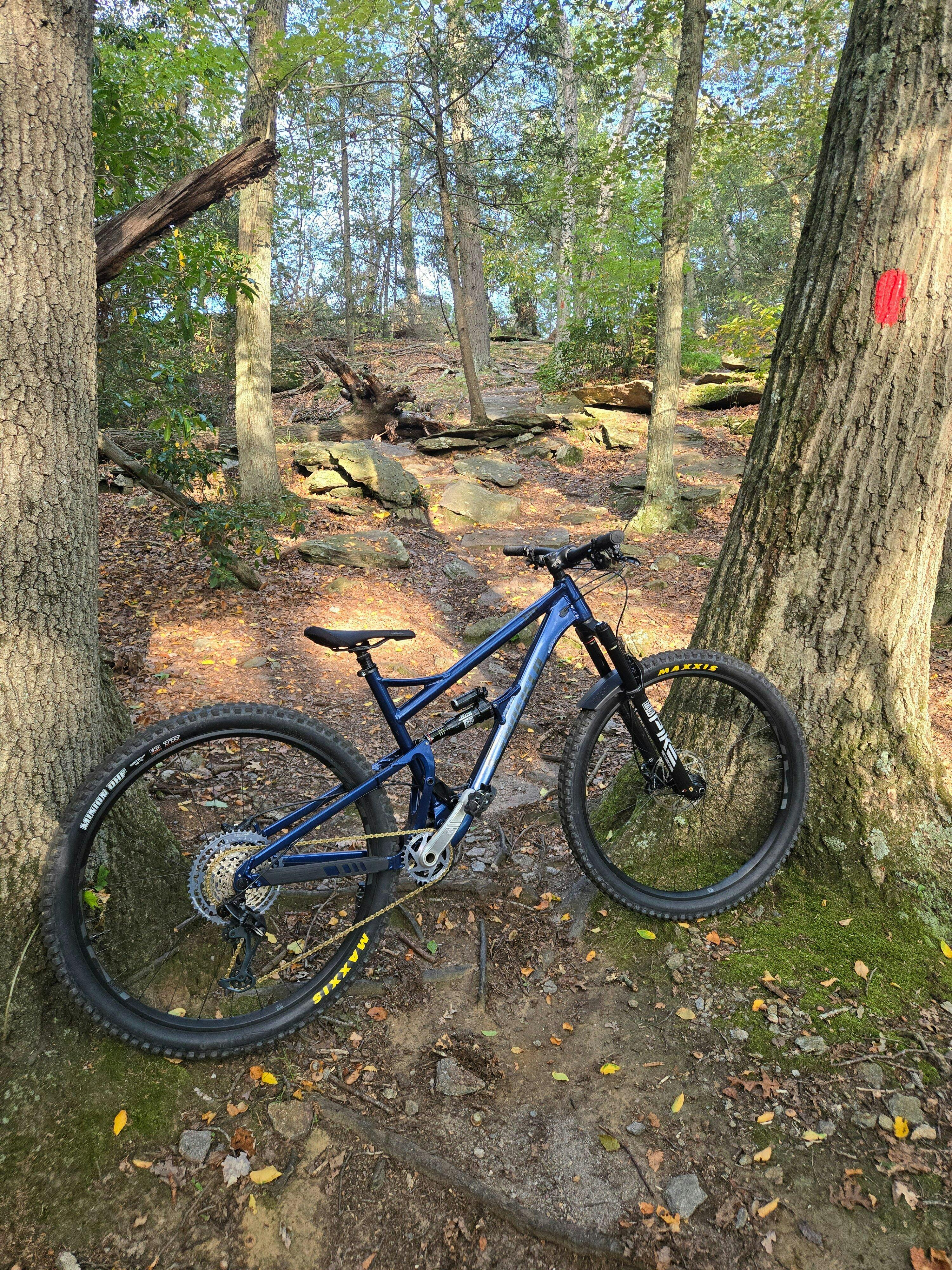

NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown.
