29" or MX WHEELS // 165mm REAR // 170mm FRONT
We build what you actually want to ride — your size, your color, your bike.
Ready to Ship Late March
1 Small — Black
1 Large — Raw
1 Large — Pinkle
1 XL — Silver
If your size is here, this is your chance to grab one in March.
May Production — Claim Yours Now
50 frames. Colors not locked yet — you choose what you want, not what's left.

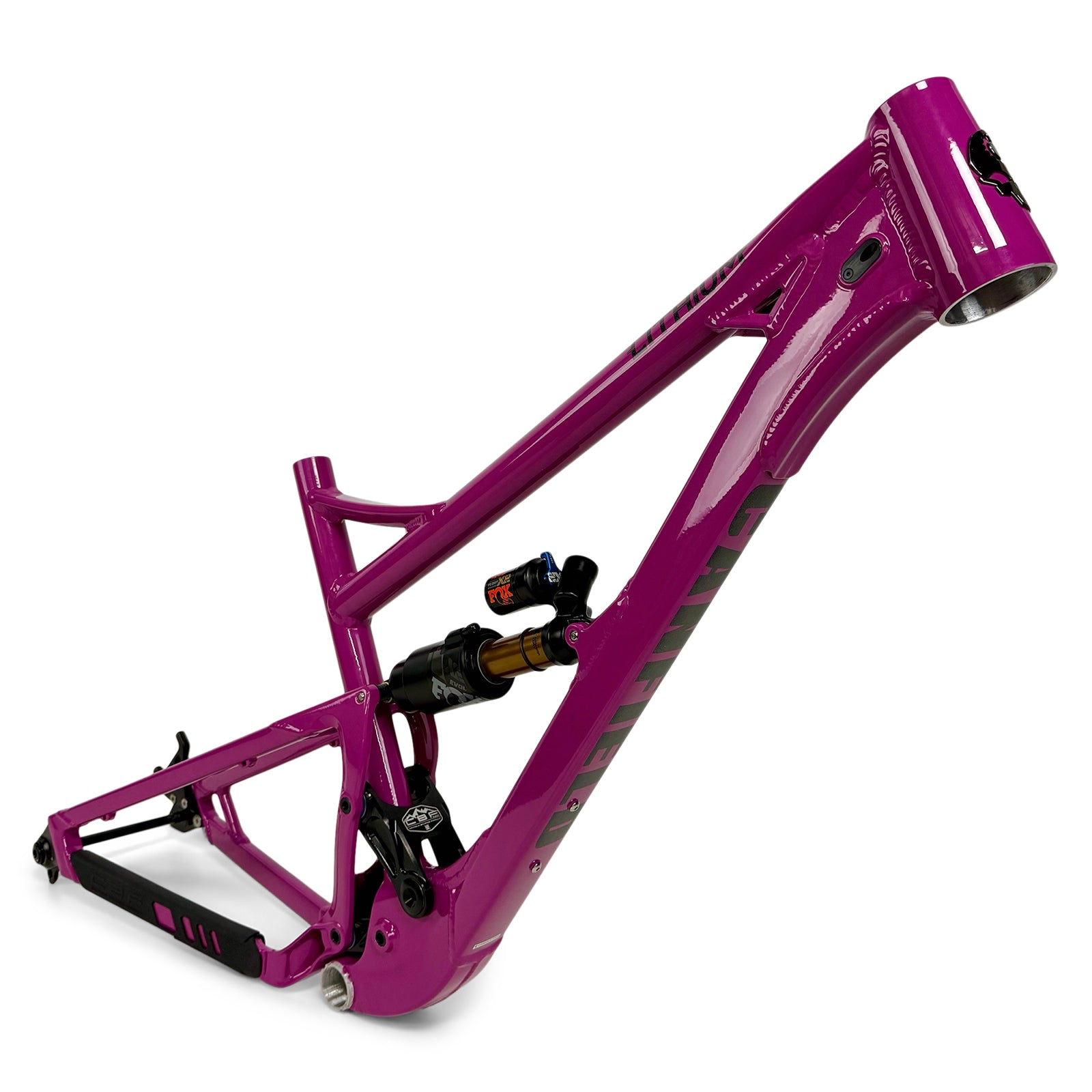

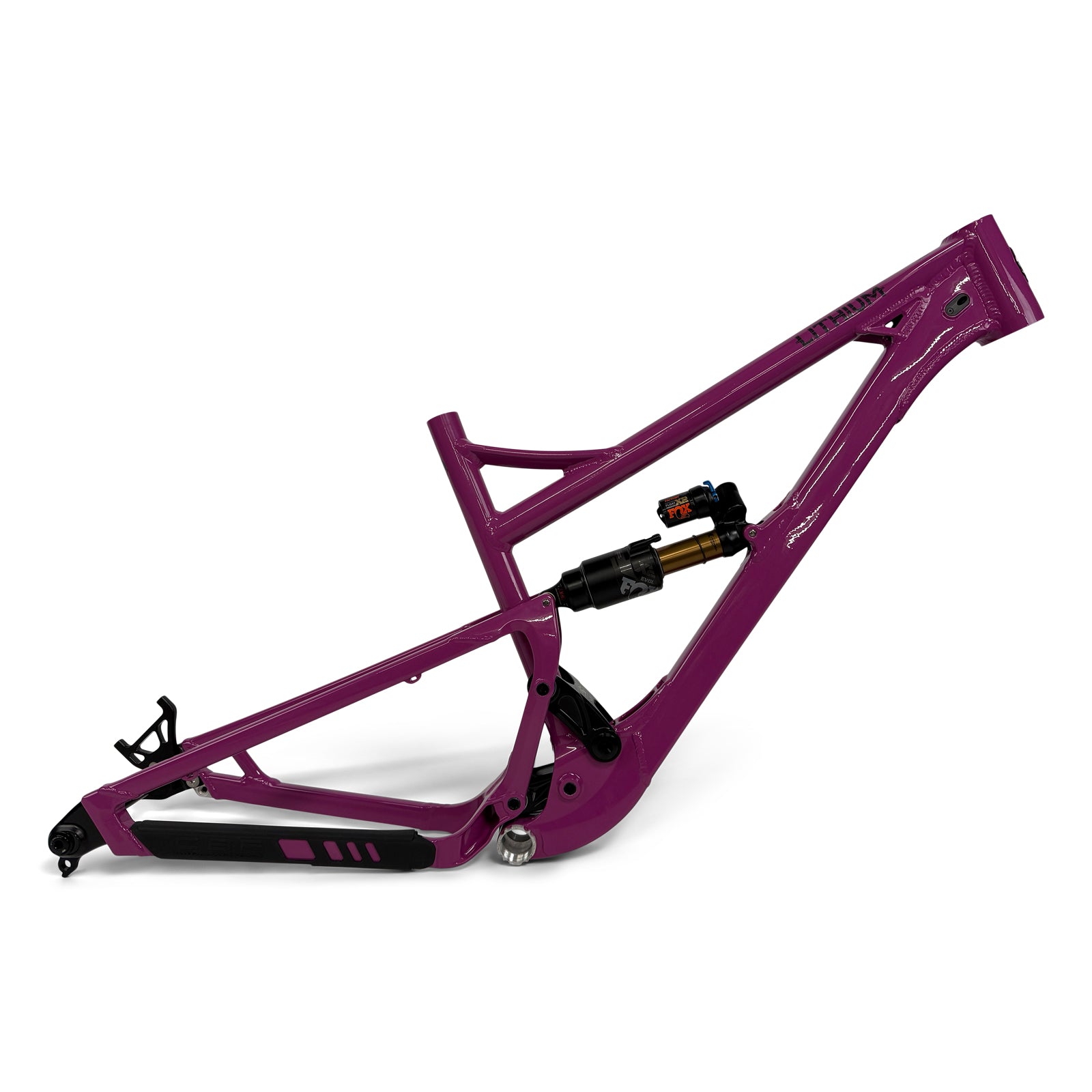

Pinkle · Raw · Silver Anodized
(Black Anodized - Available through March 20 only by special request.)
Order now, pay in full. Your size, your color, shipping in May. No substitutions, no surprises.
Have questions about sizing, shock setup, or which build makes the most sense for your riding? Call us — we love to talk bikes.

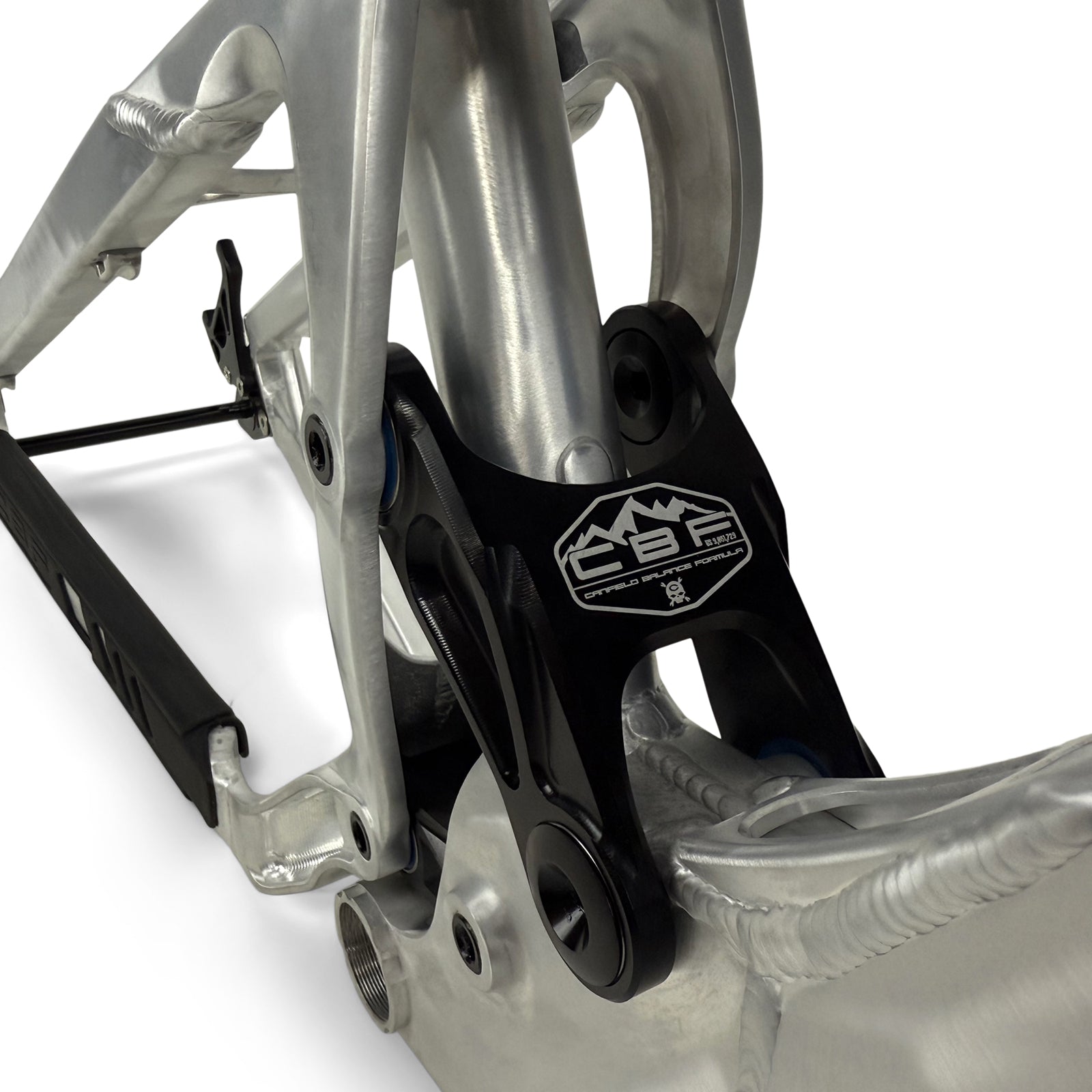

The Lithium V3 is the evolved version of our long-travel 29er platform — refined for modern drivetrains, adjustable rear center tuning, and next-generation versatility. Built around our patented Canfield Balance Formula™ (CBF™) suspension, the Lithium delivers efficient climbing traction and composed, high-speed descending without compromise.
Lithium V3 Features
- UDH compatible rear triangle
- Rear axle flip chip: 427 / 435 / 443mm chainstay options
- MX compatibility: Run 29" or MX (Mullet) wheelset with ease

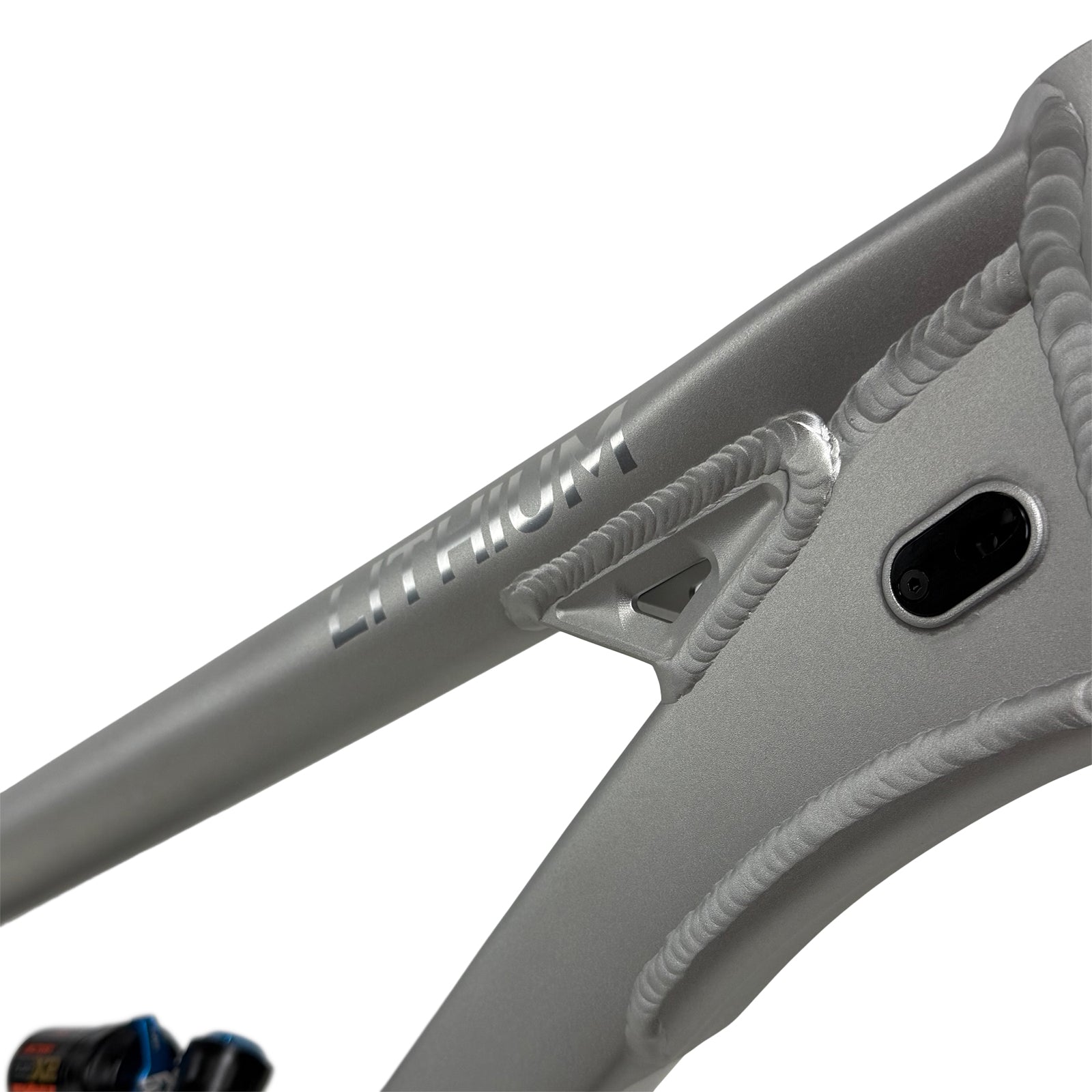

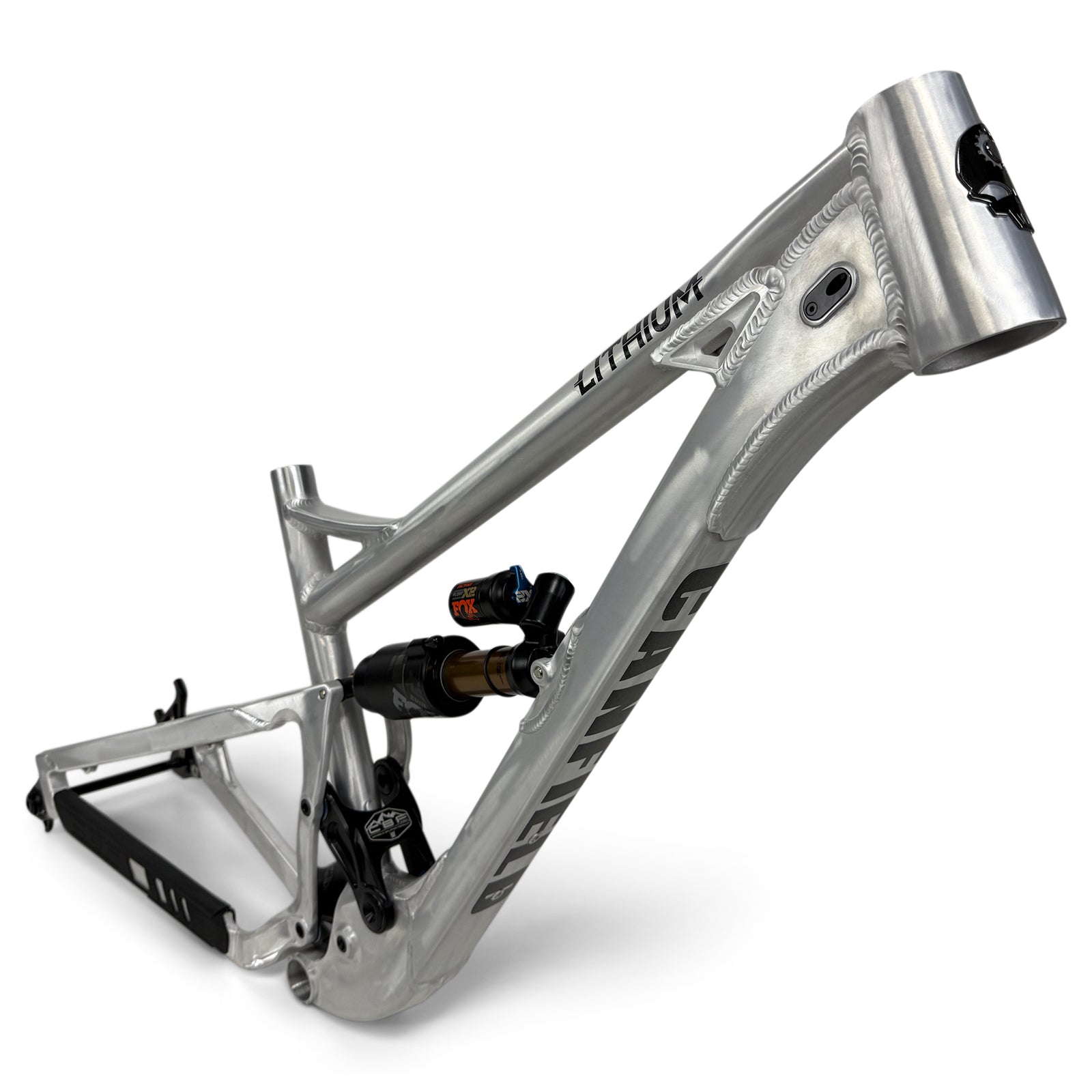

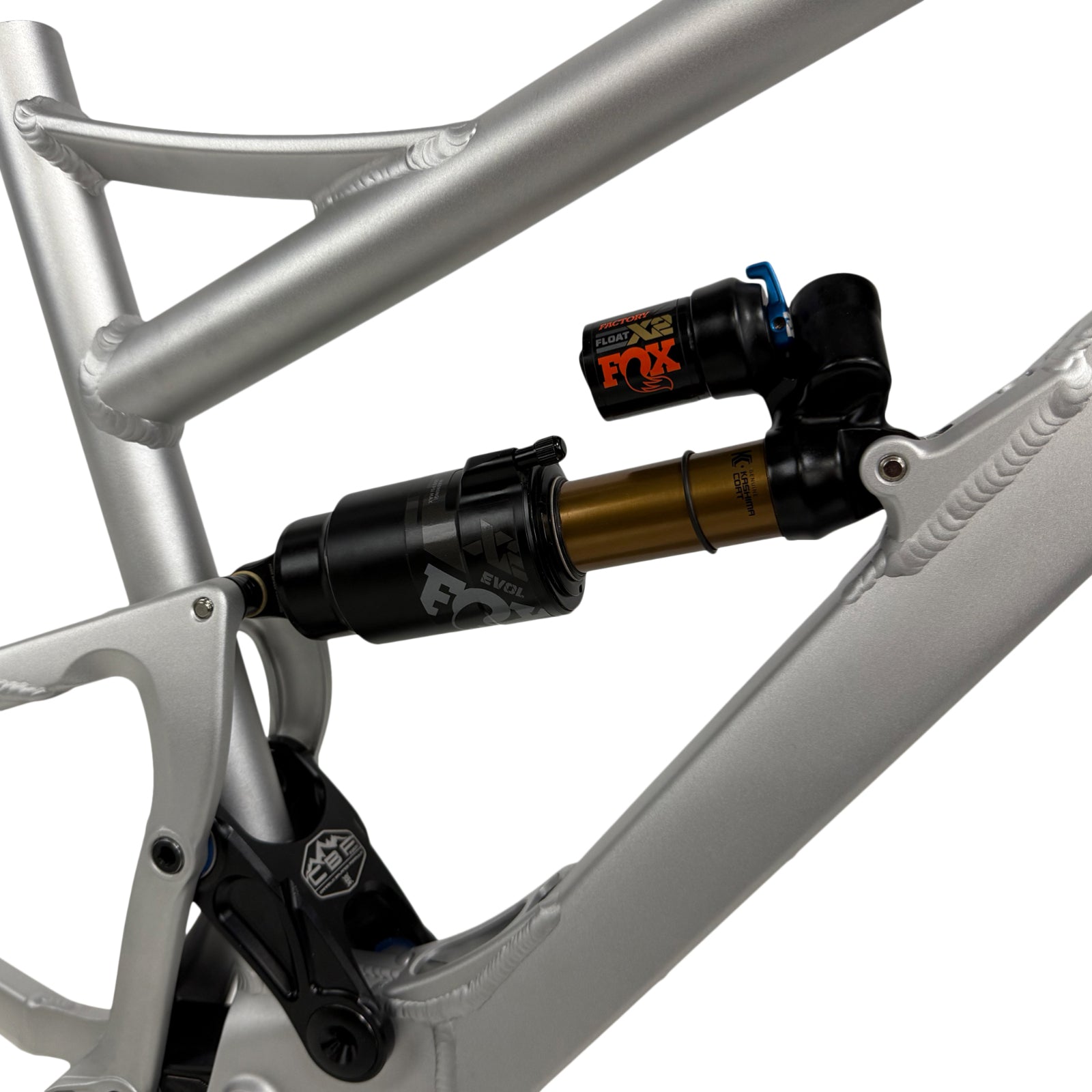

- 7005 aluminum frame with CNC 7075 links
- Optimized for air or coil shocks
- Recommended fork: 160–180mm (44mm offset)
- 73mm BSA threaded bottom bracket
- Boost 148 x 12mm rear spacing
- Max tire clearance: 80mm
- Shock: 230mm x 65mm (165mm travel)

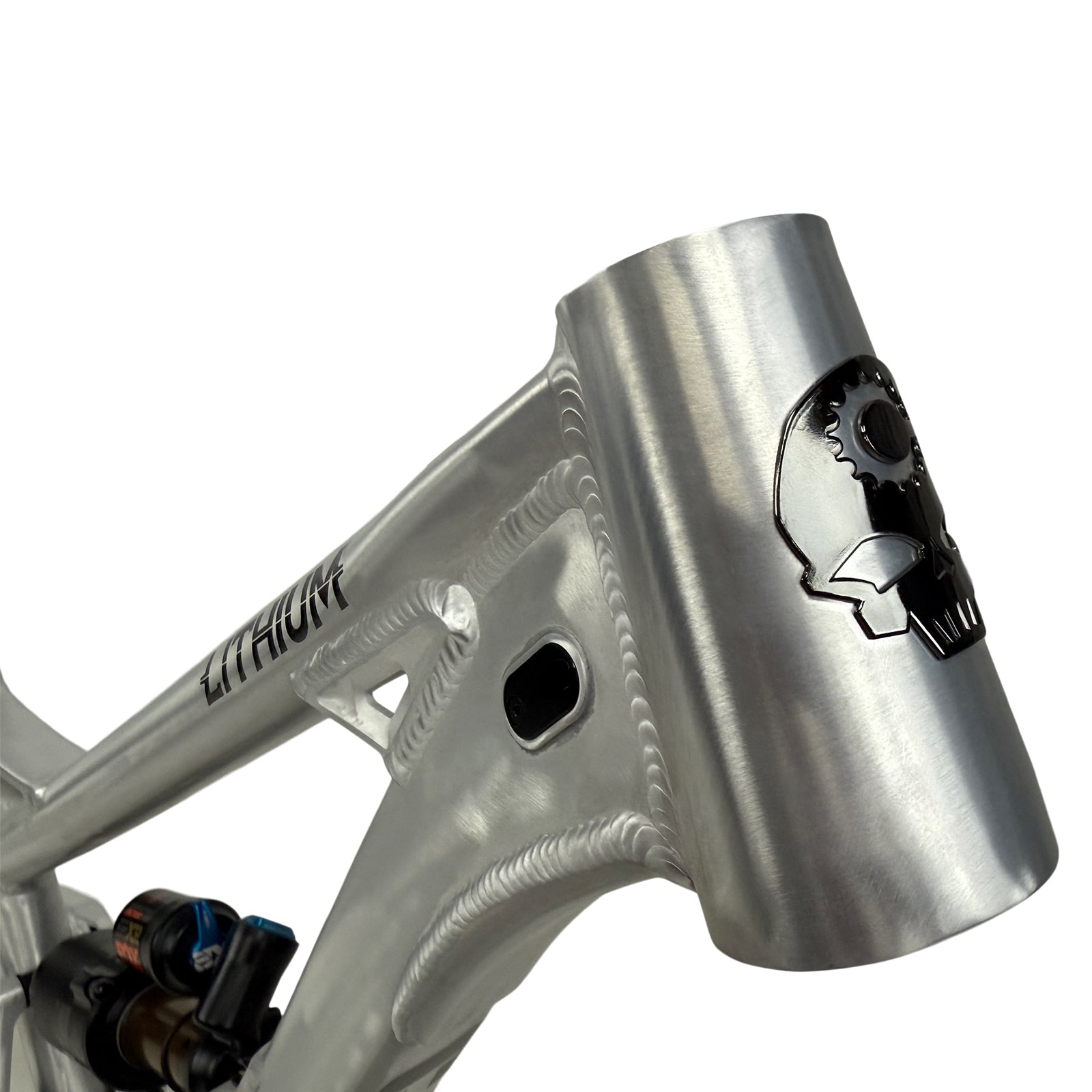

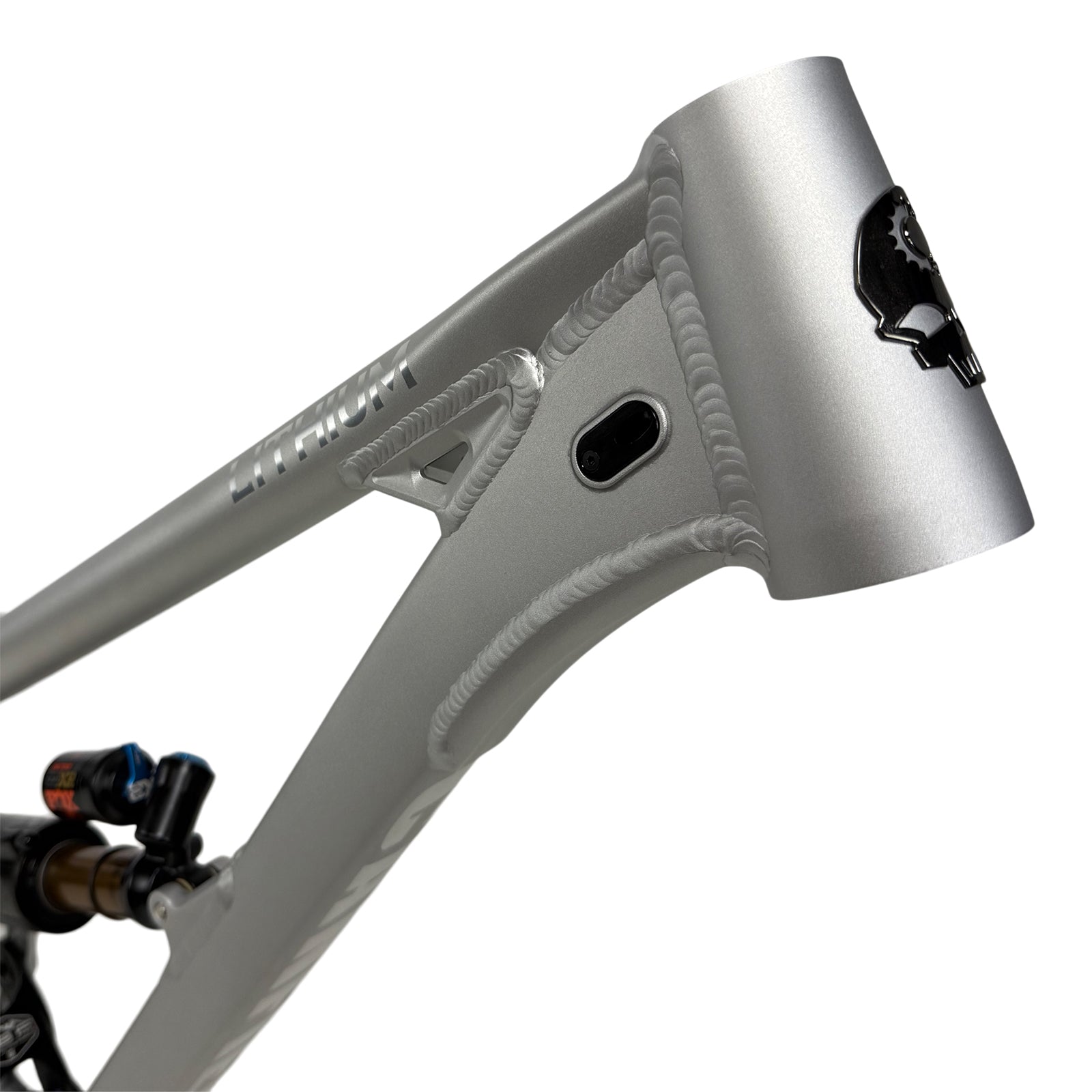

- Tapered headtube 44/56
- 15mm pivot bearings (6902 Max)
- 30.9mm dropper compatible
- ISCG 05 removable tabs
- Post Mount 180 brake
- Medium weight: 7.7 lb (frame only)
Geo & Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Top Tube (Eff.) | 575 | 601 | 628 | 655 |
| Reach | 425 | 450 | 475 | 500 |
| Front Center | 764 | 791 | 818 | 845 |
| Stack | 635 | 640 | 644 | 649 |
| Standover | 702 | 739 | 770 | 782 |
| Wheelbase | 1193 | 1221 | 1248 | 1275 |
| Head Tube Angle* | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Tube Angle (Eff.) | 76.7° | 76.7° | 76.7° | 76.7° |
| Chainstay | 435 | 435 | 435 | 435 |
| BB Height | 350 | 350 | 350 | 350 |
| Rider Height | 5'2"–5'7" | 5'5"–5'11" | 5'9"–6'3" | 6'1"–6'6" |
*Geo based on 170mm fork (582mm axle-to-crown).
Seat Height vs Effective Seat Tube Angle
| 600mm | 77.43° |
| 700mm | 76.23° |
| 800mm | 75.33° |
Coil Spring Rate Recommendations
| 120–140 lbs | 300 |
| 140–160 lbs | 350 |
| 160–180 lbs | 400 |
| 180–200 lbs | 450 |
| 200–220 lbs | 500 |
| 220+ lbs | 550 |
Shock Fitment Compatibility (Small / Medium)
| Shock | Small | Medium |
|---|---|---|
| RockShox Deluxe Ultimate | YES | YES |
| RockShox Super Deluxe Ultimate Air | TBD | TBD |
| RockShox Vivid Ultimate Air | TBD | TBD |
| RockShox Vivid Ultimate Coil | TBD | TBD |
| MRP Hazard Coil | YES | YES |
| Cane Creek Kitsuma Air | YES | YES |
| Öhlins TTX2 Air | YES | YES |
| DVO Topaz | YES | YES |
| DVO Jade | YES | YES |
| Fox FLOAT X | NO | YES (Reversed) |

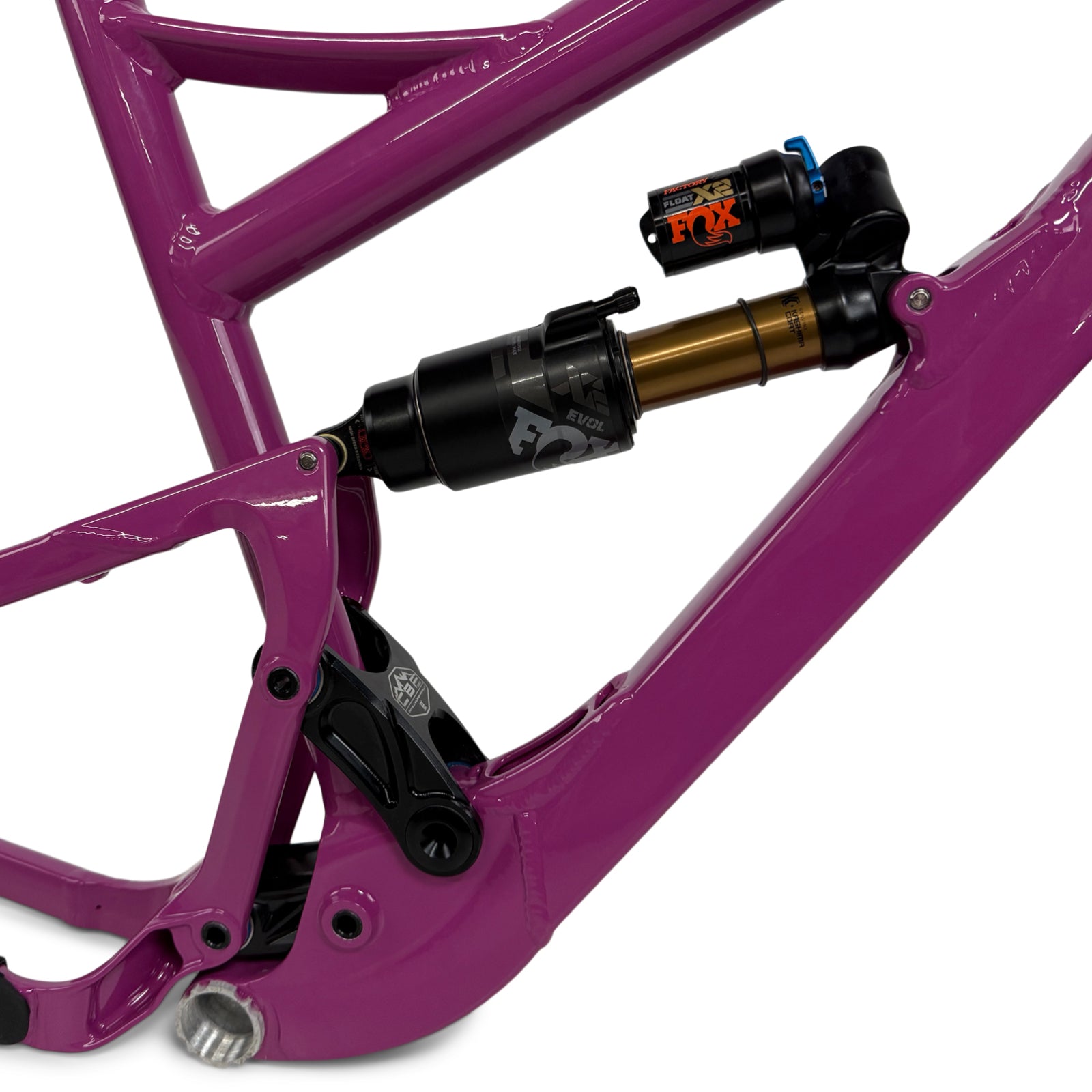

| Fox FLOAT X2 | YES | YES |
| Fox DHX2 | YES | YES |
I have so much fun riding this bike. Outfitted with Push Suspension, it’s my favorite bike I’ve ever ridden - no other bike makes me want to push my limits and succeed more than my Lithium. The geometry is ultra confident and steep terrain is so fun on this thing. I can definitely see myself getting more Canfield Bikes.
Hi Cy,
Thanks for sharing! So glad you’re loving your Lithium and that it’s making steep terrain a blast while pushing you to ride harder. The geometry and confidence it gives is exactly why we build them. We’re pumped to have you riding Canfield and can’t wait to see what’s next for your quiver. Thanks for riding and keep pushing those limits!
I had a strong feeling this would outperform my current bike on the downhill, but also the uphill? So pleasantly surprised by how well this climbs. It’s so nimble and flings around so well. Super happy with my purchase.
Hi Roger,
Thanks for sharing! Sounds like the Lithium has officially earned bragging rights over your old ride. Nothing beats that feeling when a bike surprises you in all the right ways. Keep pedaling and enjoy countless amazing rides ahead!
Love the frame, this is exactly what I was looking for in a new all round bike. Love Canfield and there products
Hey Anthony,
Love hearing that the Lithium is hitting the mark for you! Stoked it’s exactly what you were looking for—and even more stoked to have you on both frame and crank duty. Appreciate the support and the love for what we do.
Happy trails!
First ride on my new bike was great it road good on the up hills hit some small jumps that the bike handled them great very predictable smooth over root sections and handled the corner very good suspension was right on
Hey David,
Stoked to hear the Lithium delivered right out of the gate! Sounds like it climbed well, handled the hits, and stayed smooth through the tech—just what we like to hear.
Thanks for sharing the first ride stoke, and glad the setup’s feeling dialed.
Keep sending!
I love this bike. It is a beast! And people will routinely stop you to say " Is that a canfield, I heard about those.". And then you can tell them about the supreme level of rad that you achieved on your last ride!
Hey Chuck,
That means a lot. Seriously—one of the coolest reviews we’ve read. Short, honest, and full of stoke. Psyched to hear the Lithium’s living up to the hype—and yeah, it’s definitely got that head-turning effect. Keep spreading the gospel of rad and stacking those beast-mode rides. Send it!

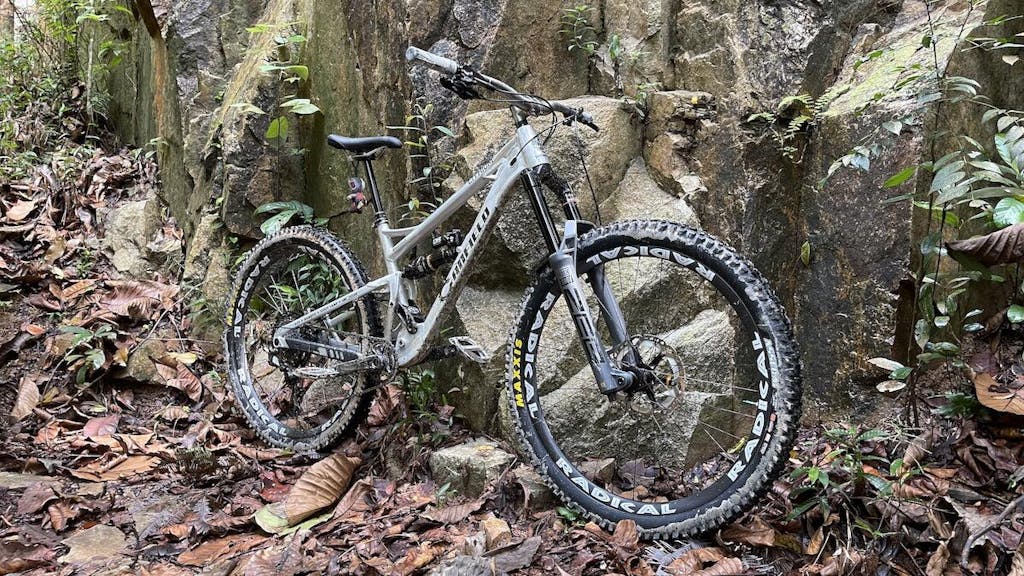

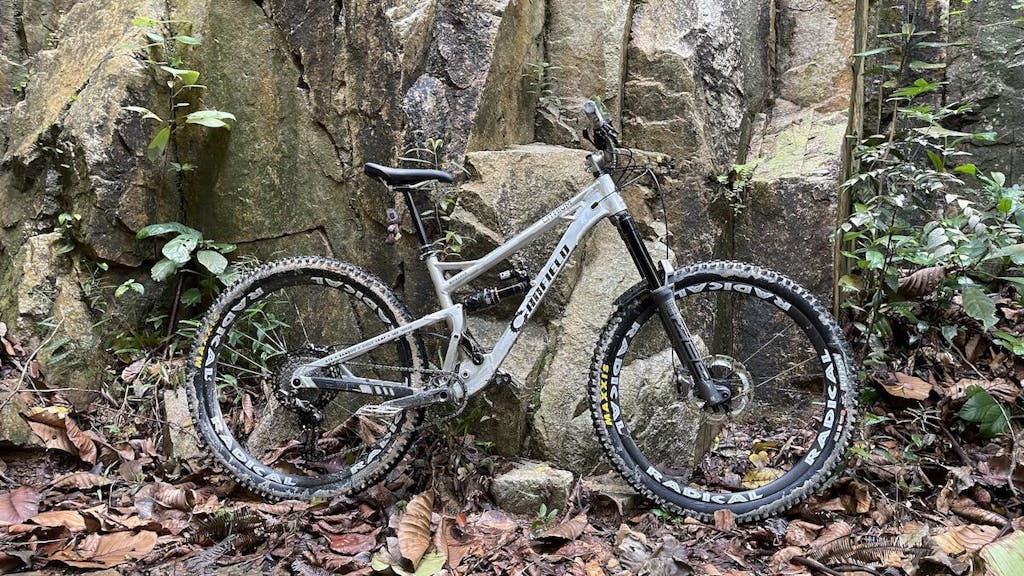

If I could only choose to own 1 mountain bike, it would be the Canfield Lithium. It is easy enough to handle the long XC-ish local trails around Singapore, and more than competent for the raw trails of Thailand, Indonesia and beyond. The CBF Linkage System is the best linkage I have used so far - and I have used or test rode almost every type of linkages available out in the market so far. I love alloy frames, after having been on carbon frames for years. I personally think that I can feel the personality of the bike I custom-built better when it comes to alloy frames. (My personal opinion is that carbon frames feels a tad too clinical). Anyways, all said, Kudos to Canfield Bikes for the their range of awesome mountain bikes and CBF!
Hey Nick,
Big kudos for the awesome review! Really appreciate the detailed feedback and support—that means a ton. Glad the Lithium’s your one-bike-to-rule-them-all for adventures across Asia. Pumped Simon rode it to victory at the 2025 Singapore Open Enduro this January. Ride safe and keep shredding!
I love my Lithium. It cruises right up and descents like a beast. One of the most versatile bikes i have ever ridden. This bike is a perfect rig for someone who wants one bike to do it all.
Hey Nate,
Love hearing this—and even better coming from someone who truly puts their bike through its paces! Stoked the Lithium’s been delivering as your do-it-all rig. Appreciate you repping the brand and backing it up on the trails! Keep sending it!
I’m very impressed with the quality of the Lithium frame. Haven’t had a chance to build it up yet. It’s winter here in Canada but am stoked to get it ready for spring riding. The Gnarigold colour looks even better in person, very impressed with the finish of the frame. This is my second Canfield. I had a 2016 Balance. Rode that for three seasons. Best bike I’ve ridden. Should’ve never sold it. Can’t wait to get this out on the trail.
Hi Ryan,
Thank you for your awesome review for our LITHIUM frameset. We're thrilled to hear that you're impressed with the color, quality and finish of the frame. We can't wait for you to build it up and hit the trails in the spring - We're honored to have you as a returning customer. Happy riding!
