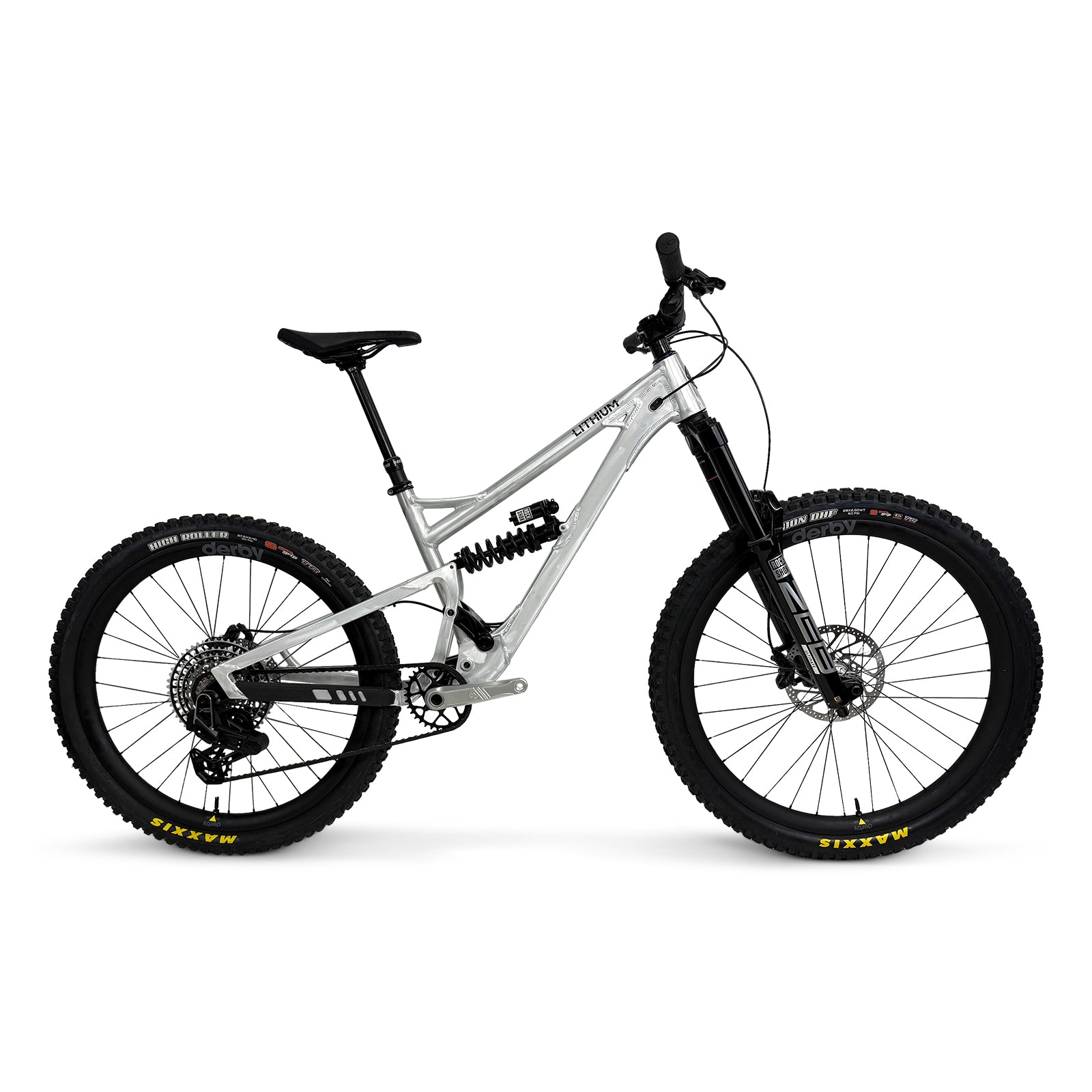

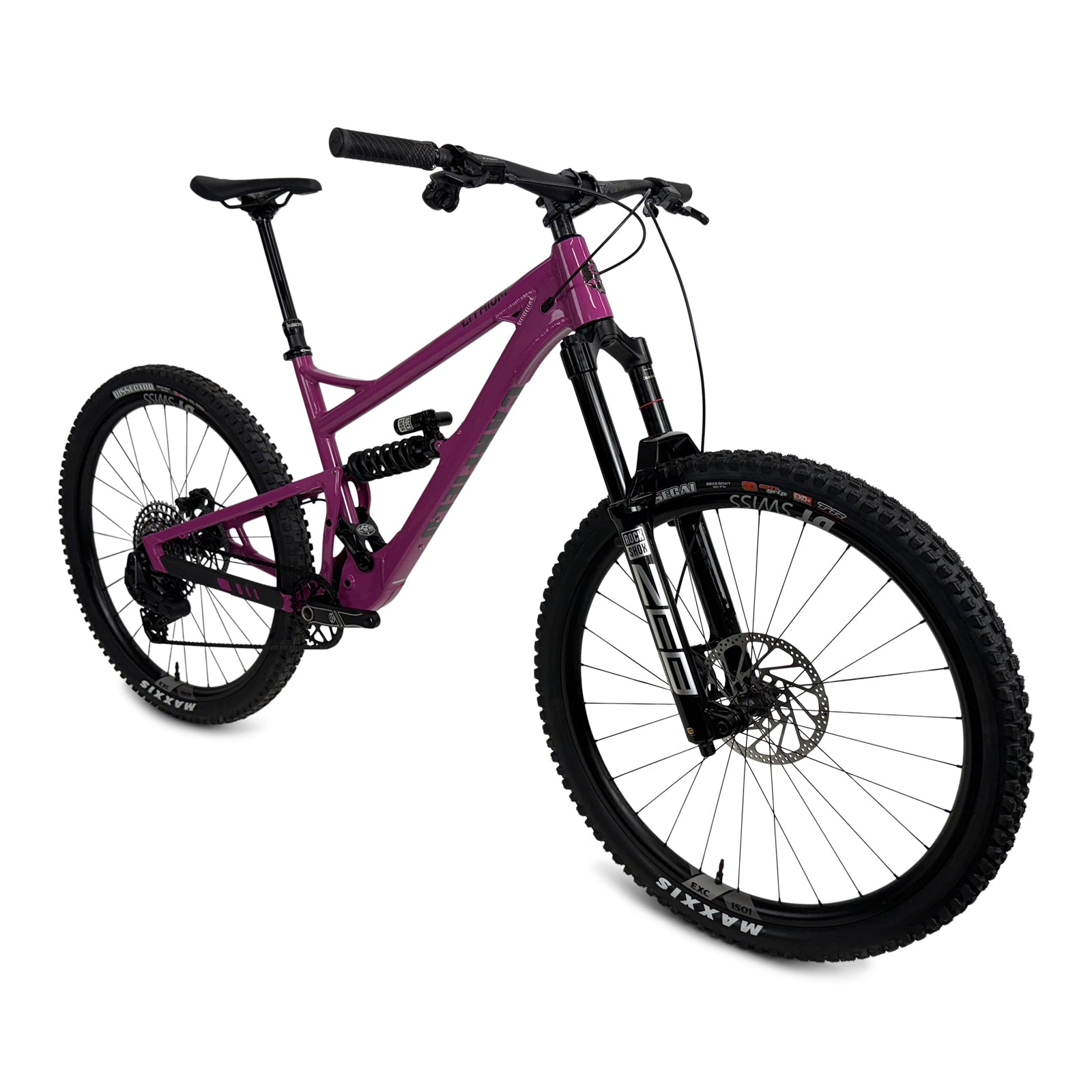

LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike
LITHIUM - Complete Bike

LITHIUM - Complete Bike

Regular price
$5,999.99
Sale price
$3,499.99
Unit price
per

Learn more about payment and financing options

Shipping calculated at checkout.

29" WHEELS // 163mm REAR // 170mm FRONT

Meet the new maniac on the mountain. Designed to destroy big descents with reckless abandon, unafraid of the effort required to earn them.  From enduro stages to bike park laps and backcountry adventures, the Lithium is a big-wheeled warrior ready for anything the mountain throws your way

**NEW BUILD SPECS + BLACK FRIDAY PRICING = 30% off MSRP**

LITHIUM COMPONENT OPTIONS
Fork Fox 38 Factory Grip 2 170mm
RockShox Zeb ULT Charger 3 A2 170mm
Shock Fox FACTORY Float X2 Air
RockShox Vivid ULT Coil
Drivetrain SRAM GX Shifter, Derailleur, e13 Helix-R 9-50t Cassette
SRAM X01 Eagle Shifter, Derailleur, 10-52t Cassette
Shimano XT Shifter, Derailleur, e13 Helix-R 9-50t Cassette
Cranks Canfield All Mountain Cranks (165mm length)
Chainring e*thirteen 32t Round
Brakeset TRP Trail EVO w/203/180mm Rotors
Wheels e*thirteen LG1+ Enduro
Tires Maxxis DHF 2.5 & Maxxis Dissector 2.4
Seatpost SDG Tellis
Saddle SDG Canfield Limited Edition
Handlebar e*thirteen Base 800mm
Stem Canfield Special Blend AM
Seat Clamp Canfield Black Forged

Complete builds may take 7-10 days to ship depending on in-stock inventory and parts availability.

GEO & SIZING

SMALL

MEDIUM

LARGE

XL

Top Tube Length (Effective)

575
601
628
655

Reach

425
450
475
500

Front Center

764
791
818
845

Stack

635
640
644
649

Standover

702
739
770
782

Wheel Base

1193
1221
1248
1275

Head Tube Angle*

64.5°
64.5°
64.5°
64.5°

Head Tube Length

110
115
120
125

Seat Tube Angle (Effective)

76.7°
76.7°
76.7°
76.7°

Seat Tube Angle (Actual)

69.1°
69.1°
69.1°
69.1°

Seat Tube Length

380
420
460
490

Chainstay Length

430
430
430
430

Bottom Bracket Height (Approx.)**

350
350
350
350

Bottom Bracket Drop

28
28
28
28

Rider Height***

5'2" - 5'7"
5'5"-5'11"
5'9"-6'3"
6'1"-6'6"
*Geo based on 582 axle to crown fork (170mm)
**Based on 2.5 tires and 582 axle to crown fork (170mm)
***Recommendation only. Sizing depends on body type, personal preference and riding style.

Seat Height vs. Effective Seat Tube Angle
600mm = 77.43 °
700mm = 76.23 °
800mm = 75.33 °

FEATURES
• 29” All-Mountain/Enduro

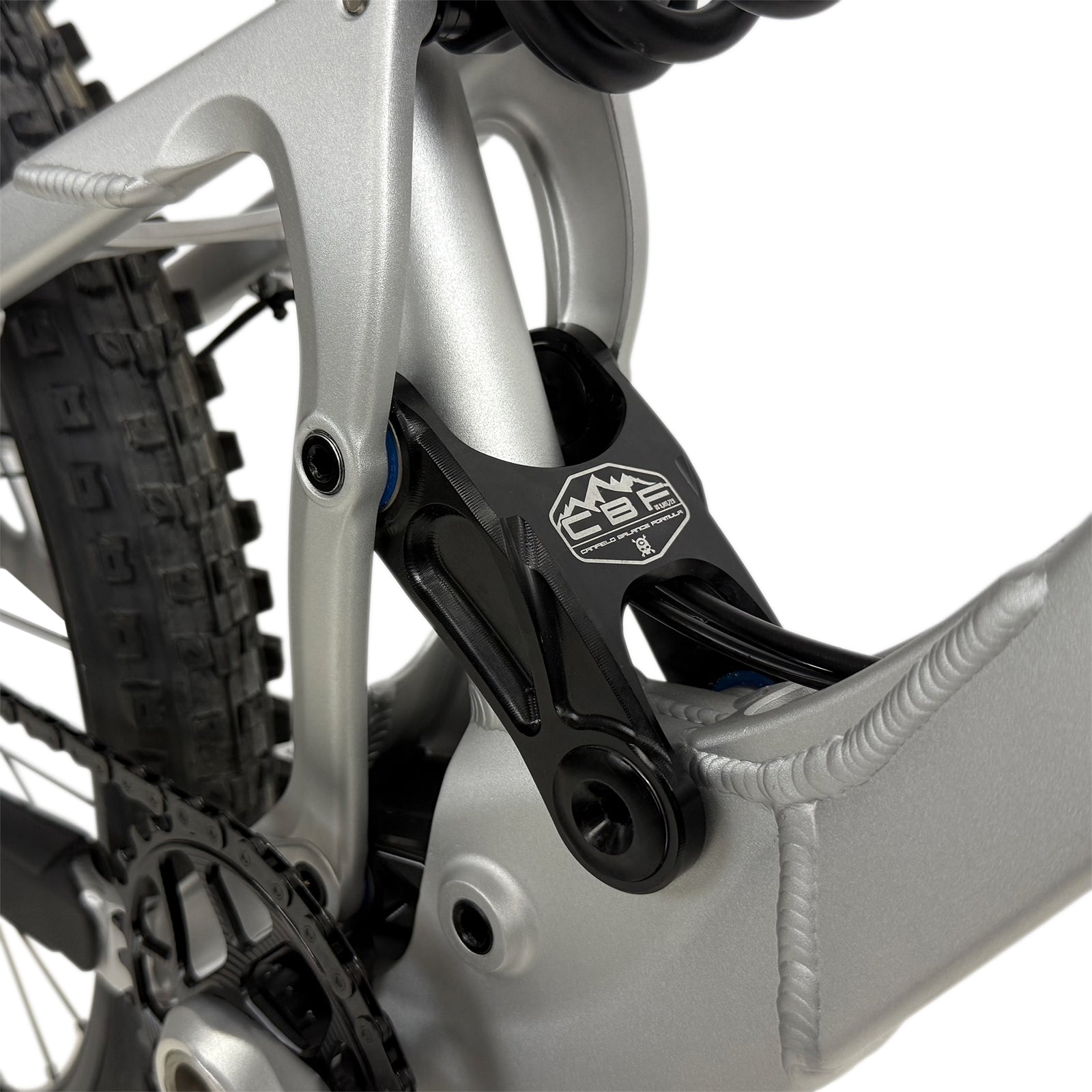

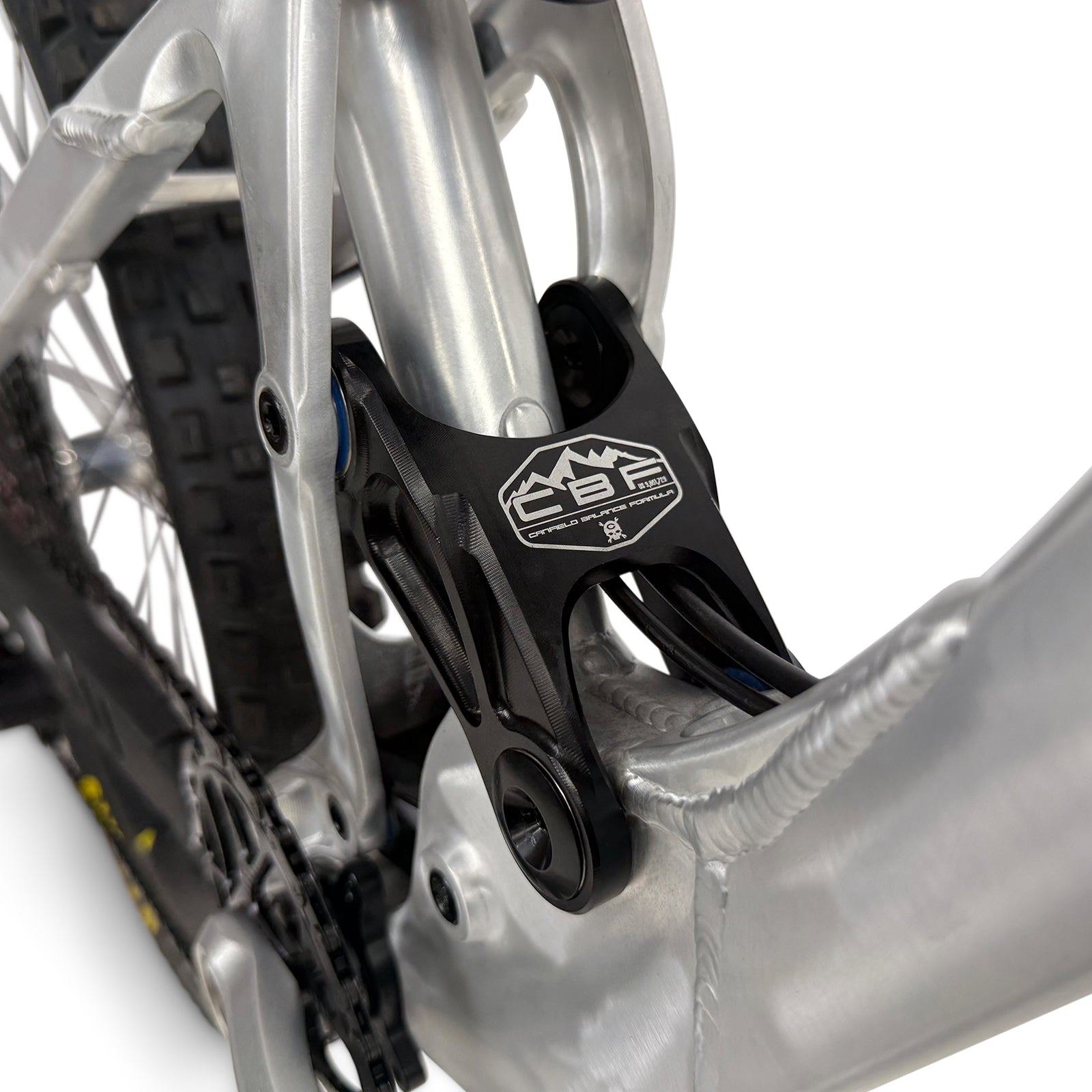

• Patented Canfield Balance Formula™ Suspension

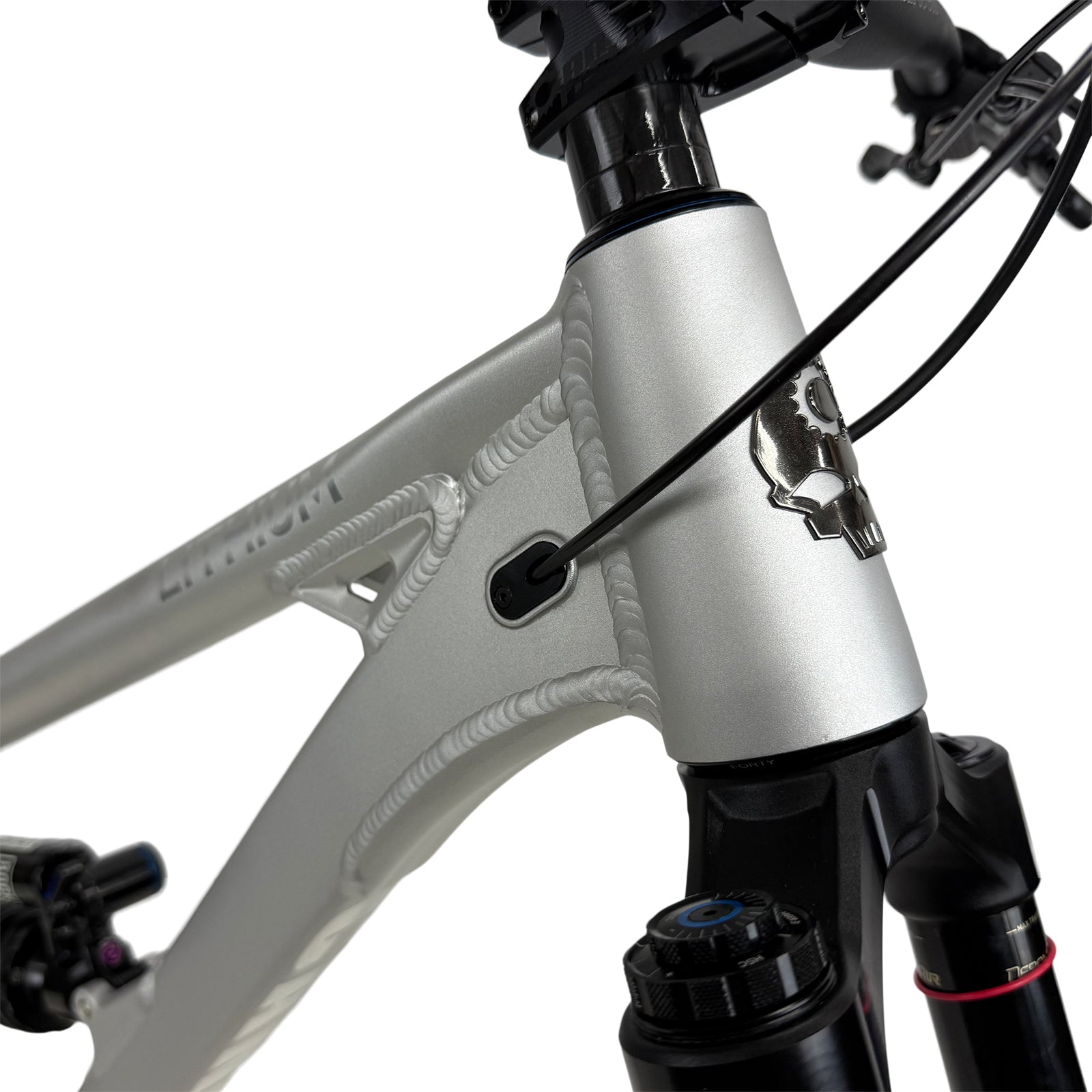

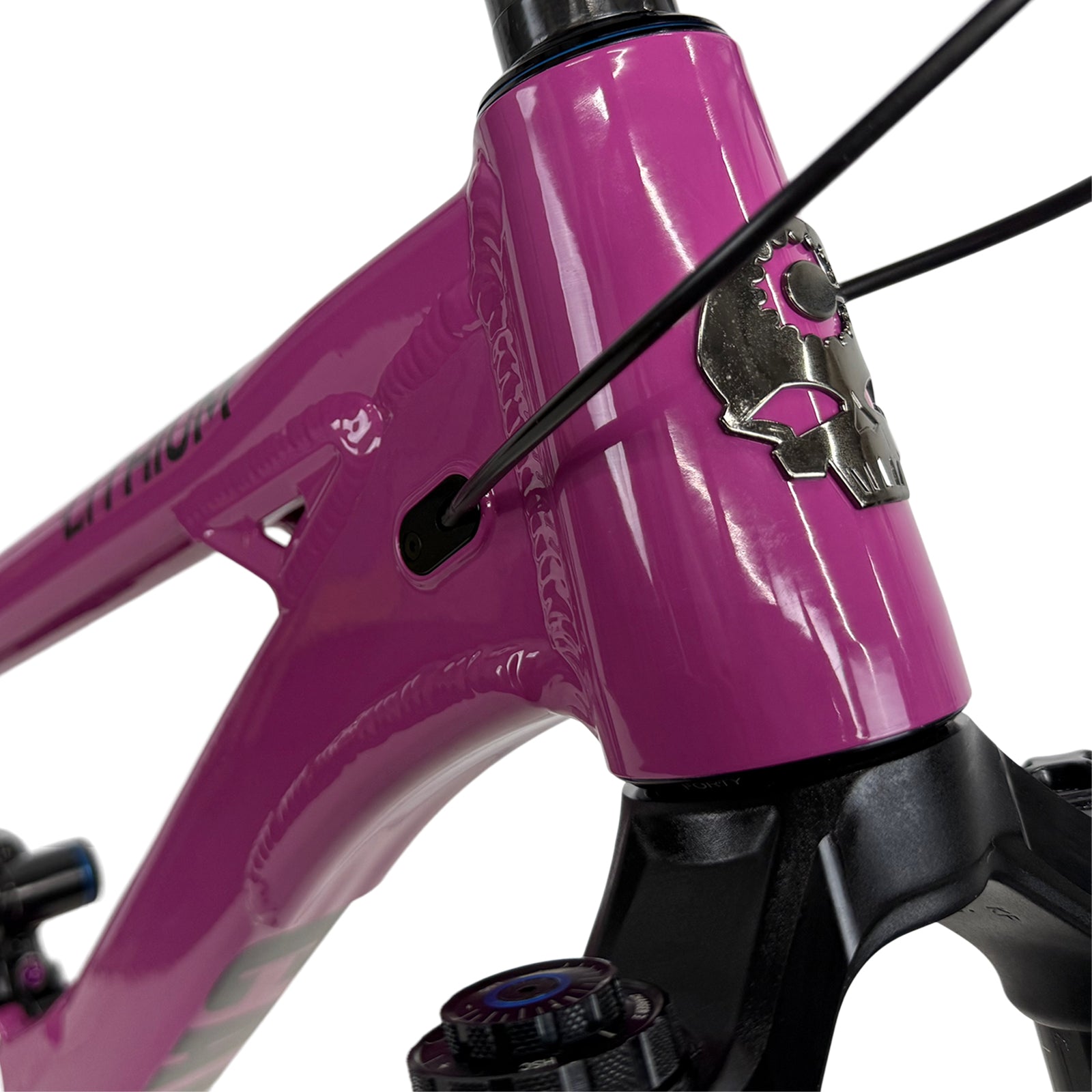

• Internal cable routing

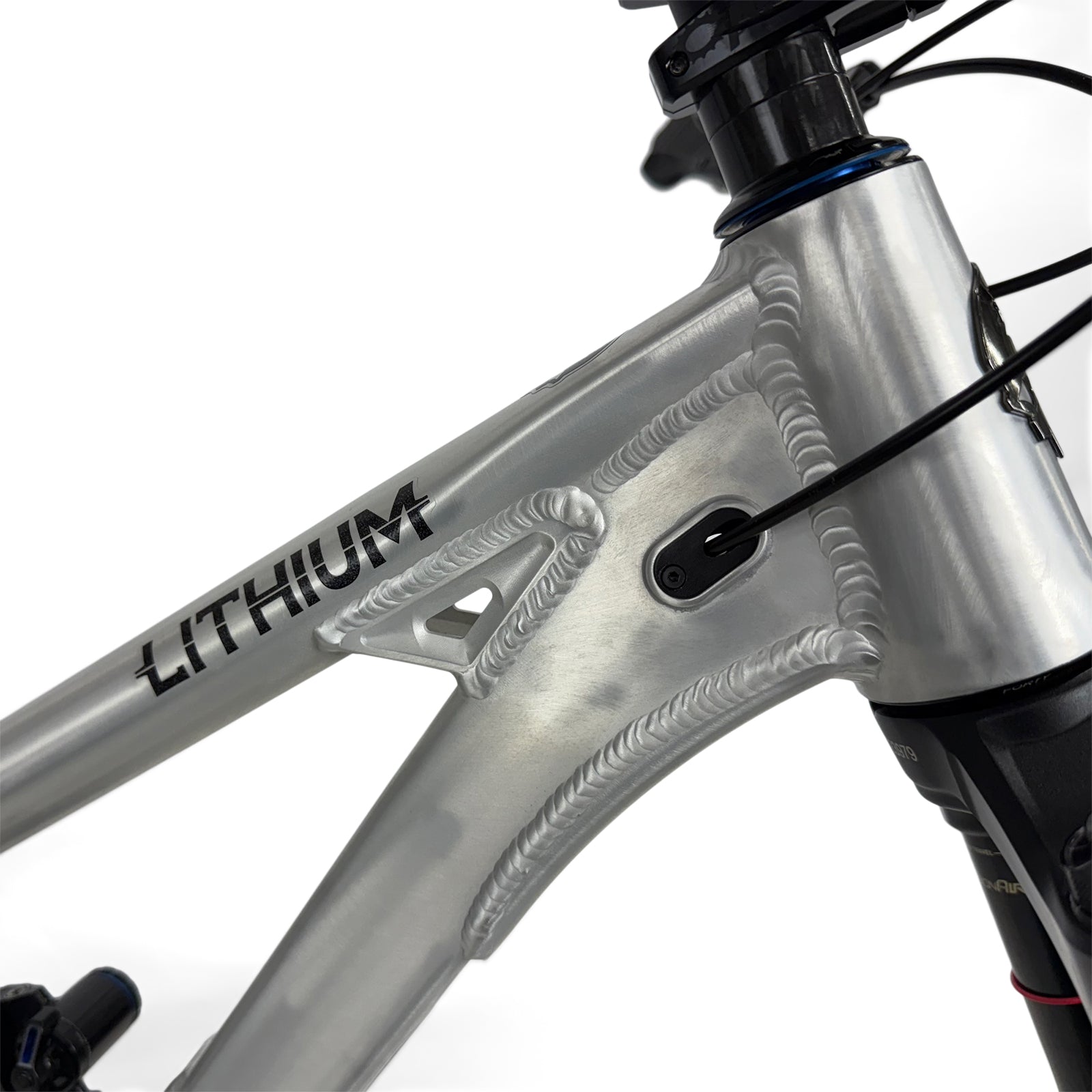

• Forged clamshell bottom bracket assembly

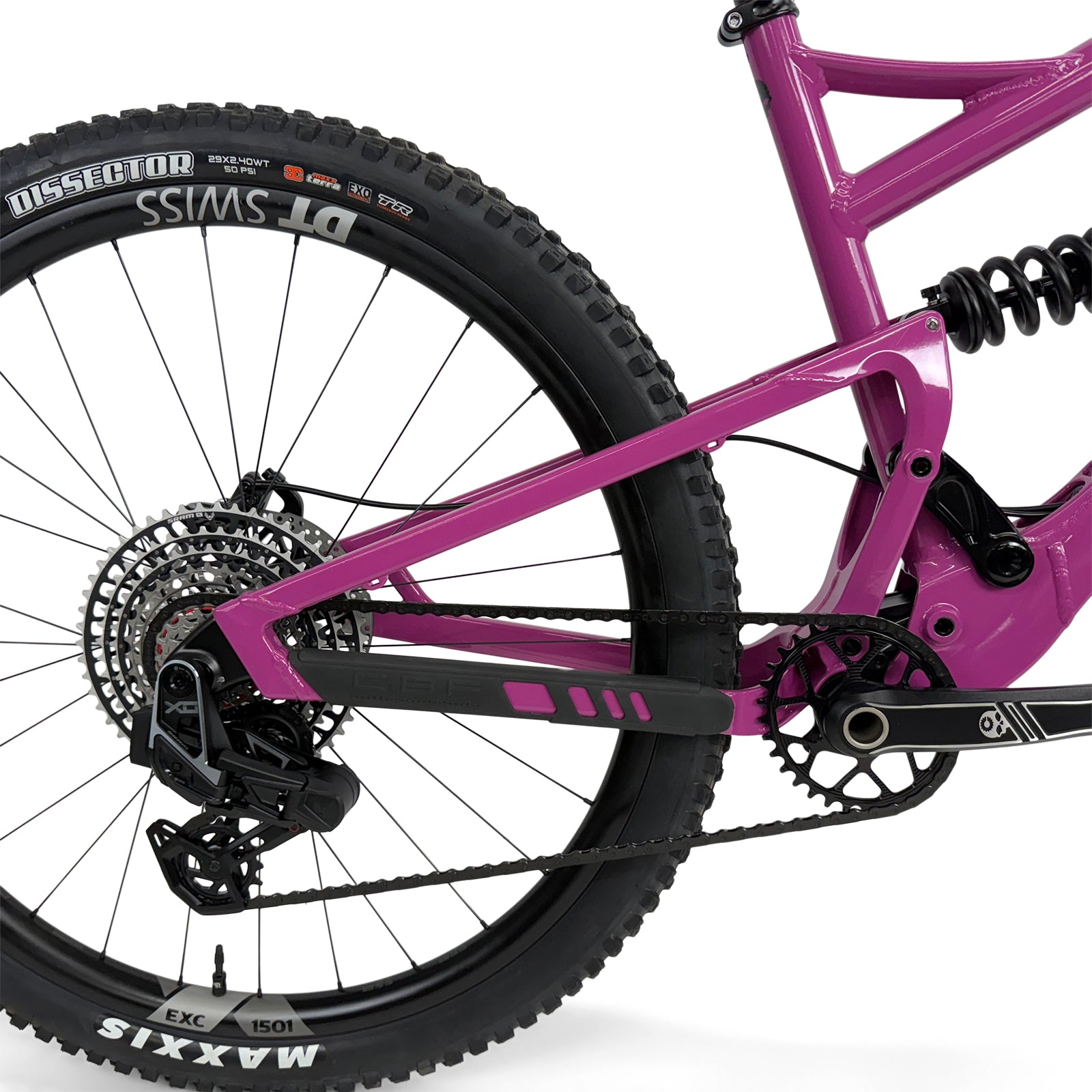

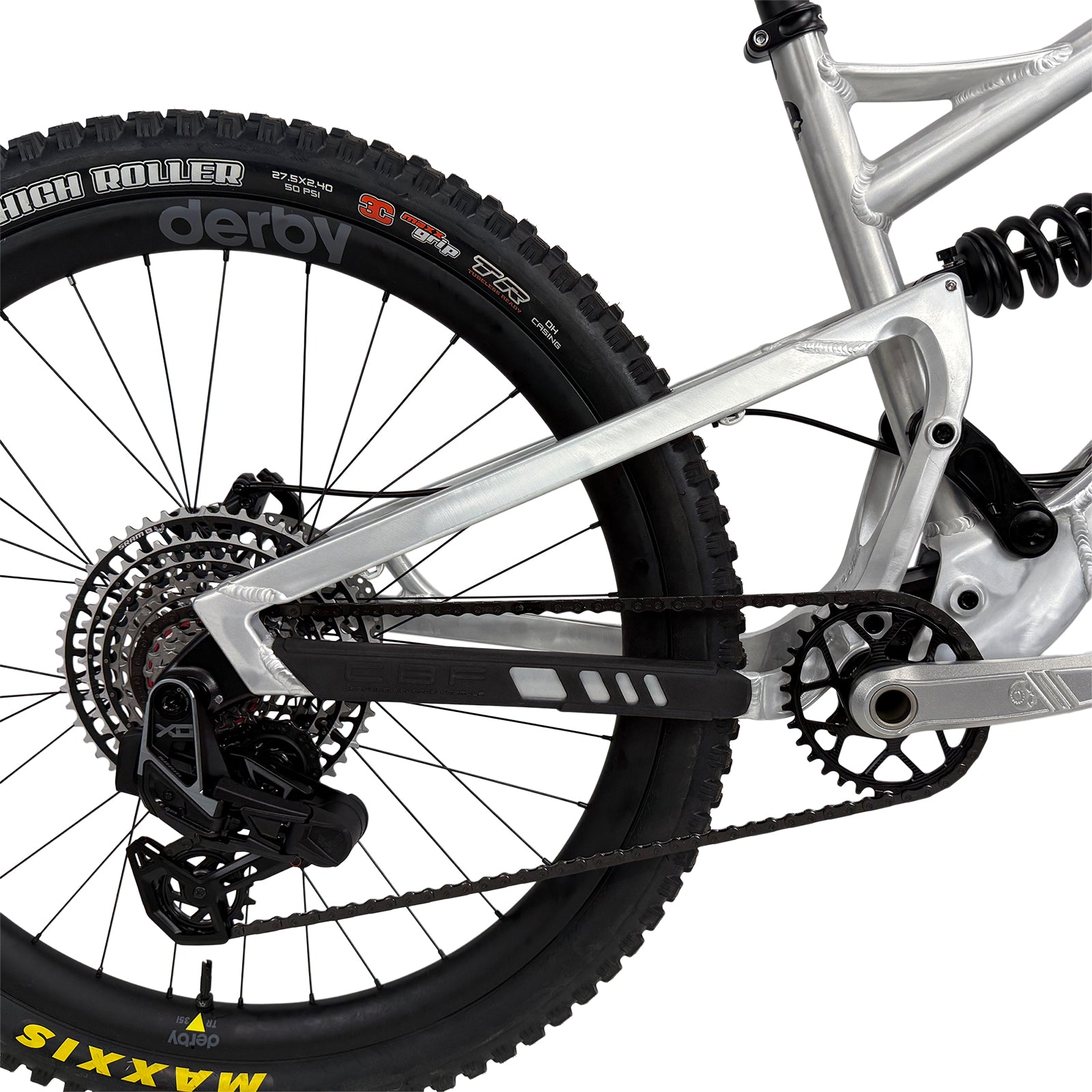

• Redesigned rear-triangle with forged one-piece vertical stays

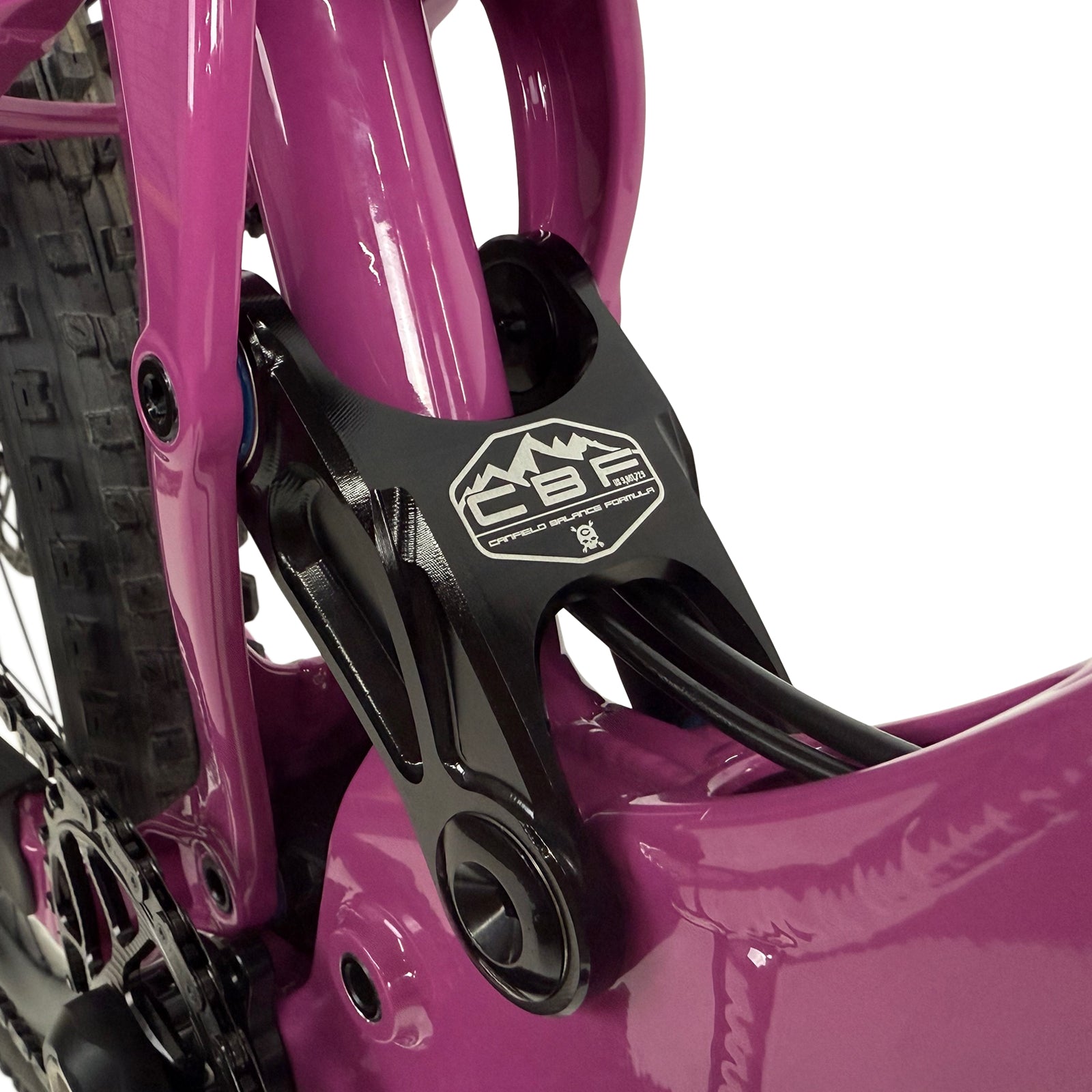

• One-piece upper and lower links

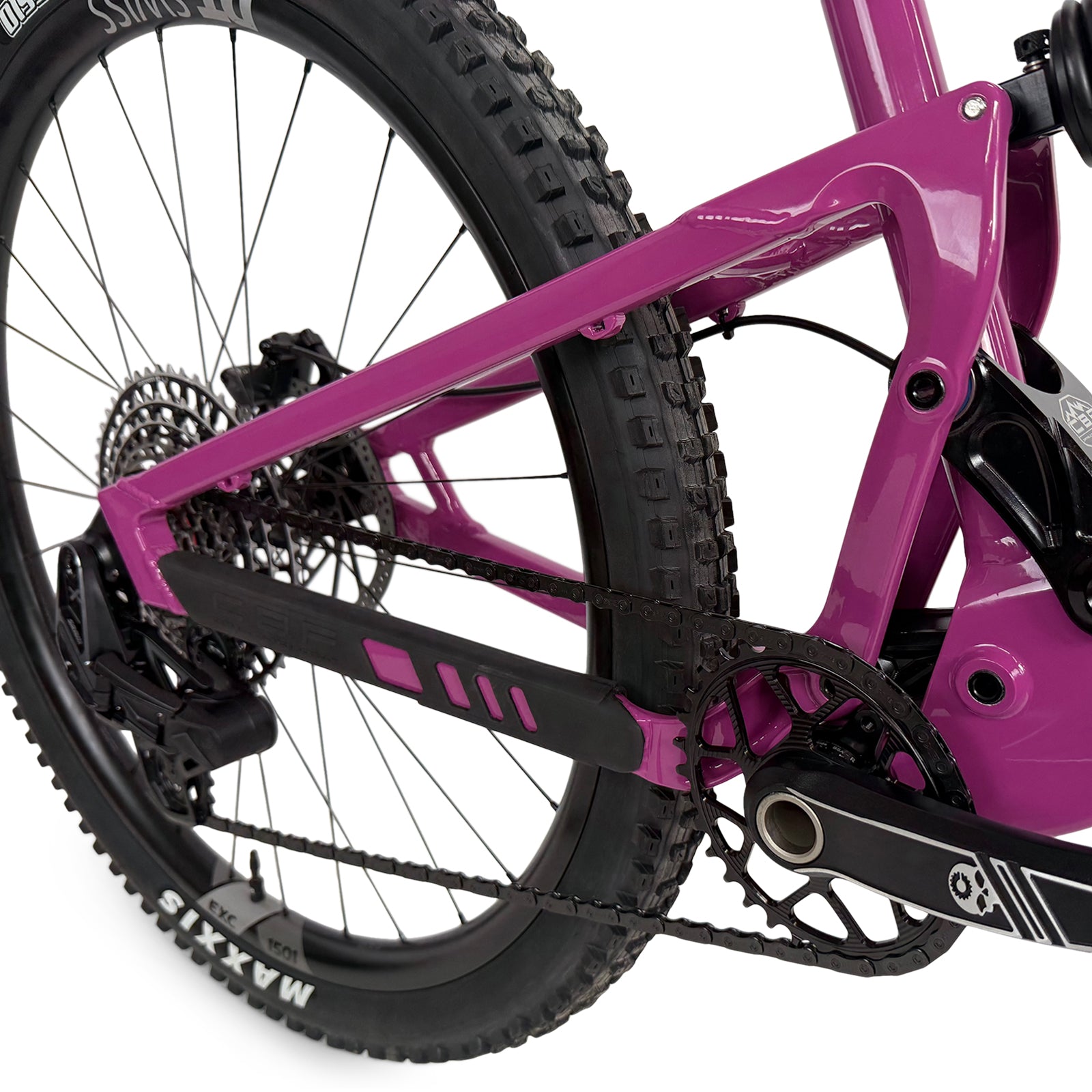

• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger
• Available in Small, Medium, Large and X-Large

FRAME SPECS
• 7005 aluminum with CNC 7075 links
• Internal cable routing with interchangeable machined ports

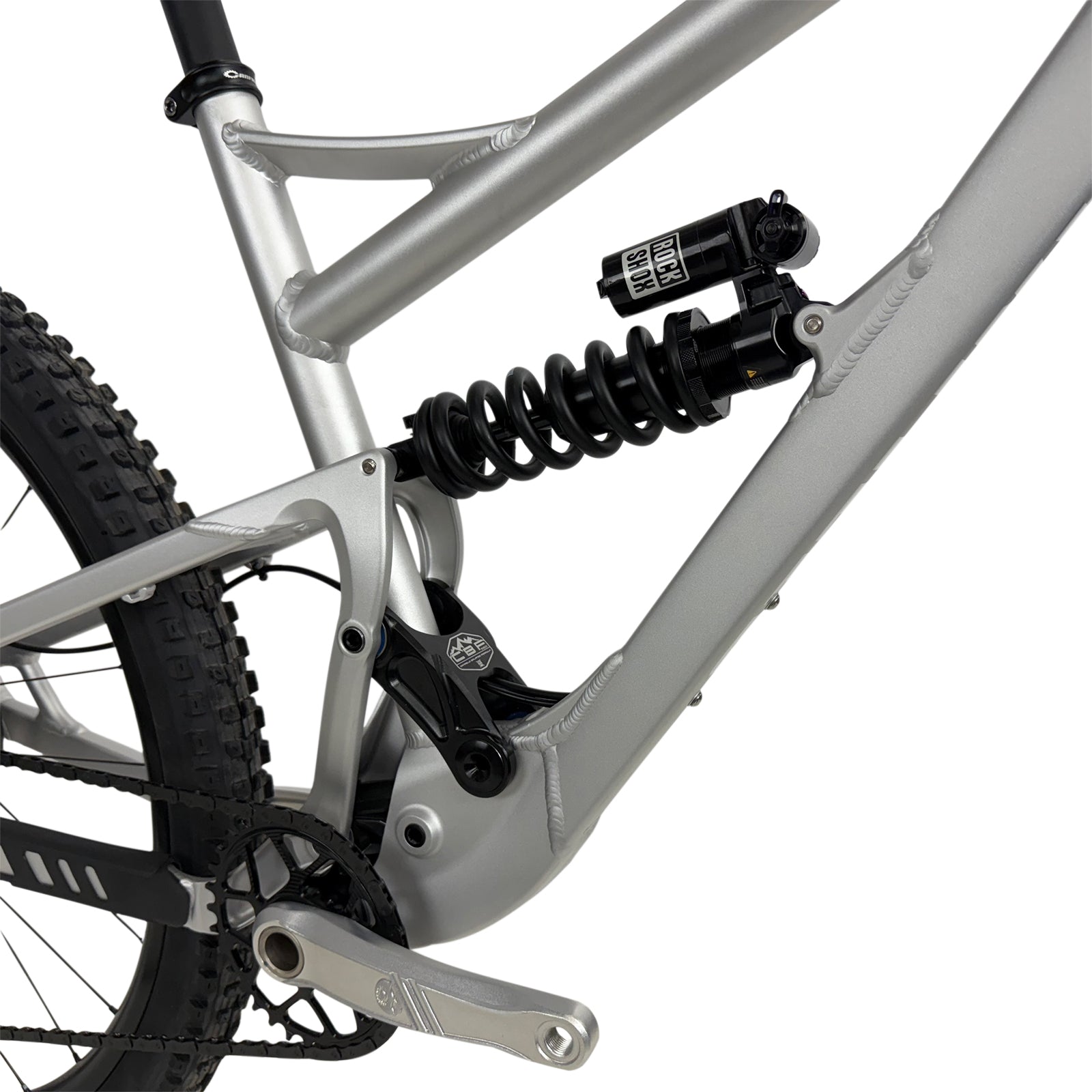

• Shock Specs (Metric):
     -163mm travel: 230mm x 65mm, (20mmX8mm/40mmX8mm hardware)
• Optimized for air or coil shocks
• Recommend fork length: 160mm – 180mm
• Recommended fork offset: 44mm
• Tapered Headtube 44mm upper/56mm lower
• 15mm pivot bearings (6902 Max)
• Bottom bracket: 73mm, BSA threaded
• Crank Length: 155mm (SM), 160mm (MD), 165mm (LG), 170mm (XL)
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
     -Frame w/ hardware: 7.7 pounds
     -Frame w/ shock: 8.8 pounds
     -Complete (carbon wheels, air shock): 31.8 pounds
     -Complete (aluminum wheels, coil shock): 33 pounds

LITHIUM COIL SPRING RATE RECOMMENDATIONS
Rider Weight Coil Spring Rate
120-140lbs 300
140-160lbs 350
160-180lbs 400
 180-200lbs 450
200-220lbs 500
220lbs+

550


LITHIUM SHOCK FITMENT COMPATIBILITY (SMALL/MEDIUM)
Shock
Small
Medium
Rockshox Super Deluxe Air 2022 (B2)
NO YES (Reversed)
Rockshox Super Deluxe Air 2023+ (C1)
NO NO
Rockshox Super Deluxe Coil 2022 (A1) YES YES
Rockshox Super Deluxe coil 2023+ (B1)  YES YES
MRP Hazard Coil
YES YES
Cane Creek Kitsuma Air
YES YES
Ohlins TTX2 Air
YES YES
DVO Topaz
YES YES
DVO Jade
YES YES
Fox FLOAT X
NO YES (Reversed)
Fox FLOAT X2 YES YES
Fox DHX2
YES YES

* Photos of bike/spec may vary slightly from actual spec based upon pre-production frame and availability of parts. Any substituted parts will be of equal or greater value than original option listed. Complete bikes ship as a frame and build kit. While frames are prepped, reamed, chased and faced, they do require experienced assembly. If you are not confident in fully assembling and tuning your new Canfield bike, we recommend visiting your favorite local bike shop.
