TILT - Frameset

Regular price: ~~$1,999.99~~
Sale price: $1,699.99
Unit price: per

Learn more about payment and financing options

Shipping calculated at checkout.

Color

Shock

Quantity

Quantity must be 1 or more

29" WHEELS // 138mm REAR // 140/150mm FRONT

There’s a party on the trails and you’re invited.The Tilt is an efficient all-rounder that climbs like a mountain goat with a meth habit. But make no mistake—like any bike with a skull on the headtube, it’s ready to party when gravity takes over.

GEO & SIZING

	SMALL	MEDIUM	LARGE	XL
Top Tube Length (Effective)	566mm	593mm	620mm	646mm
Reach	425mm	450mm	475mm	500mm
Front Center	746mm	773mm	800mm	827mm
Stack	615mm	620mm	624mm	629mm
Standover	697mm	730mm	762mm	779mm
Wheel Base	1,170mm	1,198mm	1,225mm	1,252mm
Head Tube Angle*	65°	65°	65°	65°
Head Tube Length	110mm	115mm	120mm	125mm
Seat Tube Angle (Effective)	77°	77°	77°	77°
Seat Tube Angle (Actual)	69.2°	69.2°	69.2°	69.2°
Seat Tube Length	380mm	420mm	460mm	490mm
Chainstay Length	425mm	425mm	425mm	425mm
Bottom Bracket Height (Approx.)**	343mm	343mm	343mm	343mm
Bottom Bracket Drop	32mm	32mm	32mm	32mm
Rider Height***	5'2"-5'7"	5'5"-5'11"	5'9"-6'3"	6'1"-6'6"

*Geo based on 552 axle to crown fork, 140mm travel.

**Based on 2.5 tires and 552 axle to crown fork

***Recommendation only. Sizing depends on body type, personal preference and riding style.

Seat Height vs. Effective Seat Tube Angle

600mm = 77.5 °

700mm = 76.3 °

800mm = 75.4 °

FEATURES
• 29” Trail/All-Mountain
• Patented Canfield Balance Formula™ Suspension
• Internal cable routing
• Forged clamshell bottom bracket assembly
• Redesigned rear-triangle with forged one-piece vertical stays
• One-piece upper and lower links
• Custom CBF Chainstay Protector
• Water-bottle mount
• Replaceable rear derailleur hanger

FRAME SPECS
• 7005 aluminum with 7075 T6 CNC links
• Internal cable routing with interchangeable machined ports
• Shock Specs (Metric):
-138mm travel 210mm x 55mm (20mmX8mm/40mmX8mm hardware)
• Recommend fork length: 130mm – 150mm
• Tapered Headtube 44mm upper/56mm lower
• Recommended fork offset: 44mm
• 15mm pivot bearings (6902 Max)
• Seatpost: 30.9mm, stealth dropper compatible
• Seatpost clamp: 35mm
• Rear dropouts: Boost 148mm x 12mm, Canfield axle included
• Max rear tire size: 29x2.5/27.5x2.8
• Removable ISCG tabs: ISCG 05
• Brake mount: Post Mount 180mm
• Bottom bracket: 73mm threaded
• Seatpost max insertion: 250mm(S), 265mm(M), 305mm(L), 340mm(XL)
• Weights (medium):
-Frame w/ hardware: 7.6 pounds
-Frame w/ shock: 8.9 pounds
-Complete (carbon wheels, air shock/fork): 31.8 pounds

NOTE: Full assembly is required on complete bikes. Photos for illustration purposes only. Actual component spec not shown.

Tilt Frame

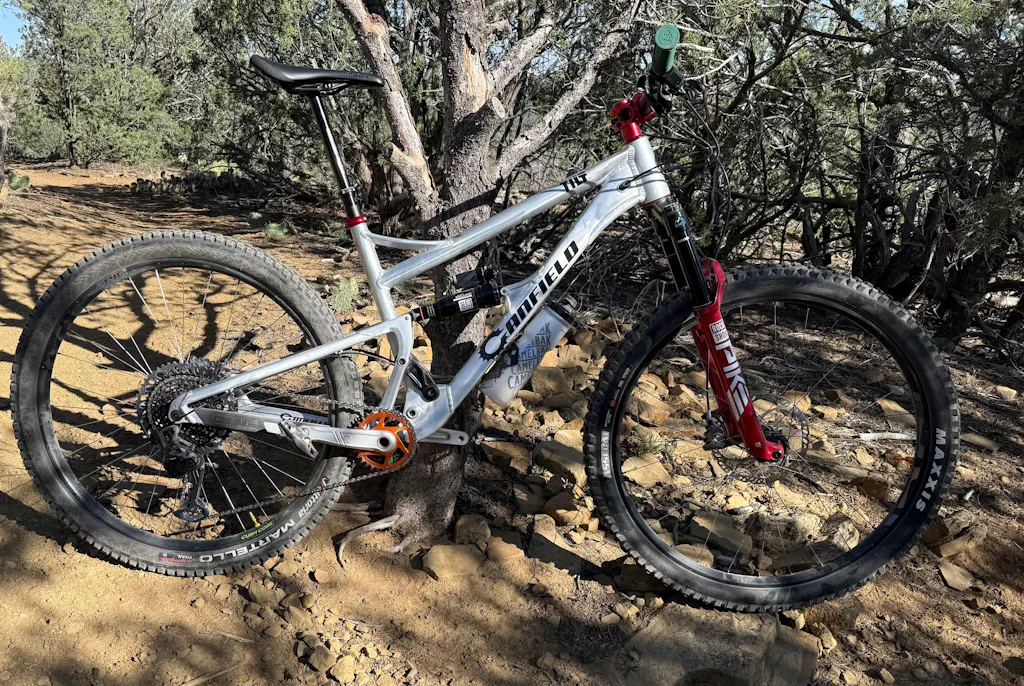

Did a frame up build of a Medium raw tilt. The thing is way more capable than a 138mm bike has any business being. Pedals like a short travel cbf bike should and just generally is what I’d call a “fun” trail bike. Also feels like it’s built to hold up and last.

Tilt Size M

This is the most fun and do it all bike I ever had. Got a size M at 5.10 and running it mullet. 150f/140r. THX Canfield

Love my Tilt

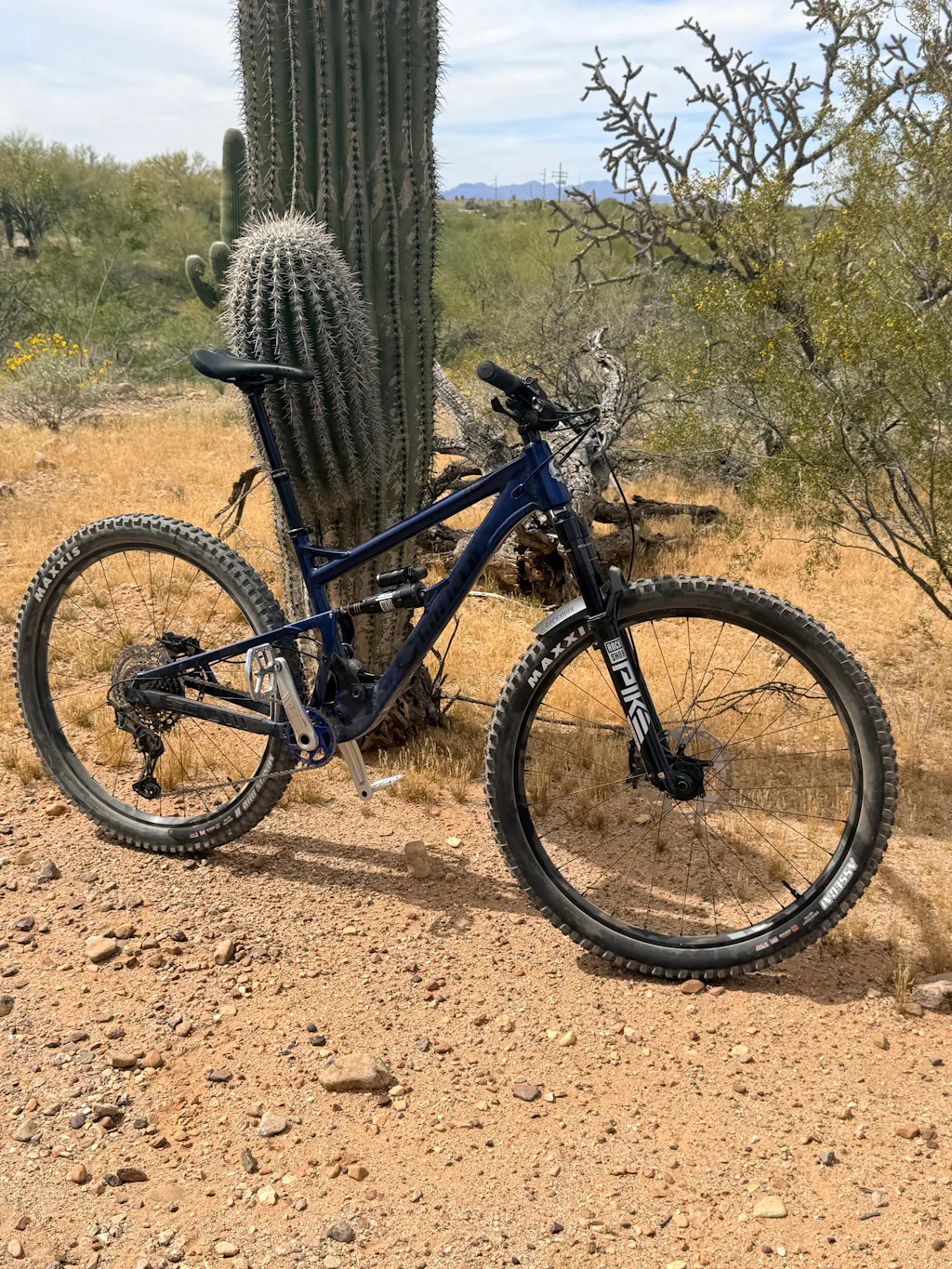

Bought my Tilt roughly a year ago and it has been amazing. Rides great, feels great and looks great! Tamed the trails of Moab! I don't think you'll be disappointed with a Canfield purchase.

No Regrets

I got a Tilt about 3 years ago and have ridden it for cross country, bike park, desert tech, forest flow, and high alpine rides. It's been solid for everything I've thrown at it. No regrets - would buy again.

On Tilt!

Customer service was exceptional! Got the exact bike I wanted with great rider input from Tyler who has the almost identical bike. Not one problem with the bike and I’ve been riding it weekly since April. Climbs like a goat, very supportive and balanced ascending while the same can be said for its downhill performance. Overall very happy with my Tilt and would recommend to anyone considering a bike to do almost anything!
