Replacement Parts for the Crampon Mountain Pedals (click here for Crampon Ultimate and Crampon Magnesium service parts).
Please select the parts you need in the dropdown menu.
Rebuild Kit includes all parts pictured for both left and right pedals. Does not include spindles.

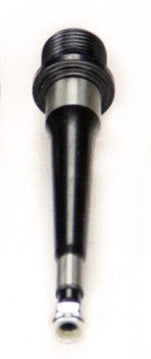

Spindles sold individually. Choose drive side (right side)* or non-drive side (left side). Nuts included.
*Note: end nut is REVERSE thread on drive side (right side) spindle

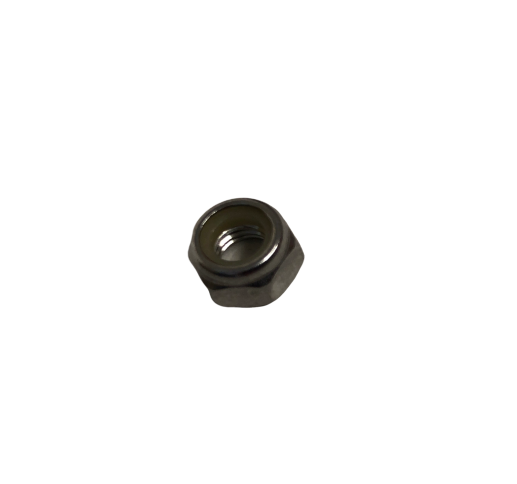

Spindle Nuts are available separately (without spindle) and sold individually for drive (reverse thread) and non-drive side (standard thread) pedals.

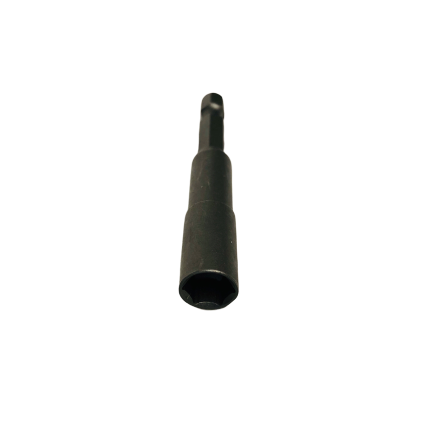

8mm Thin-Wall Socket Required: Crampon Mountain require an 8mm thin-wall socket for service (available in the dropdown menu).

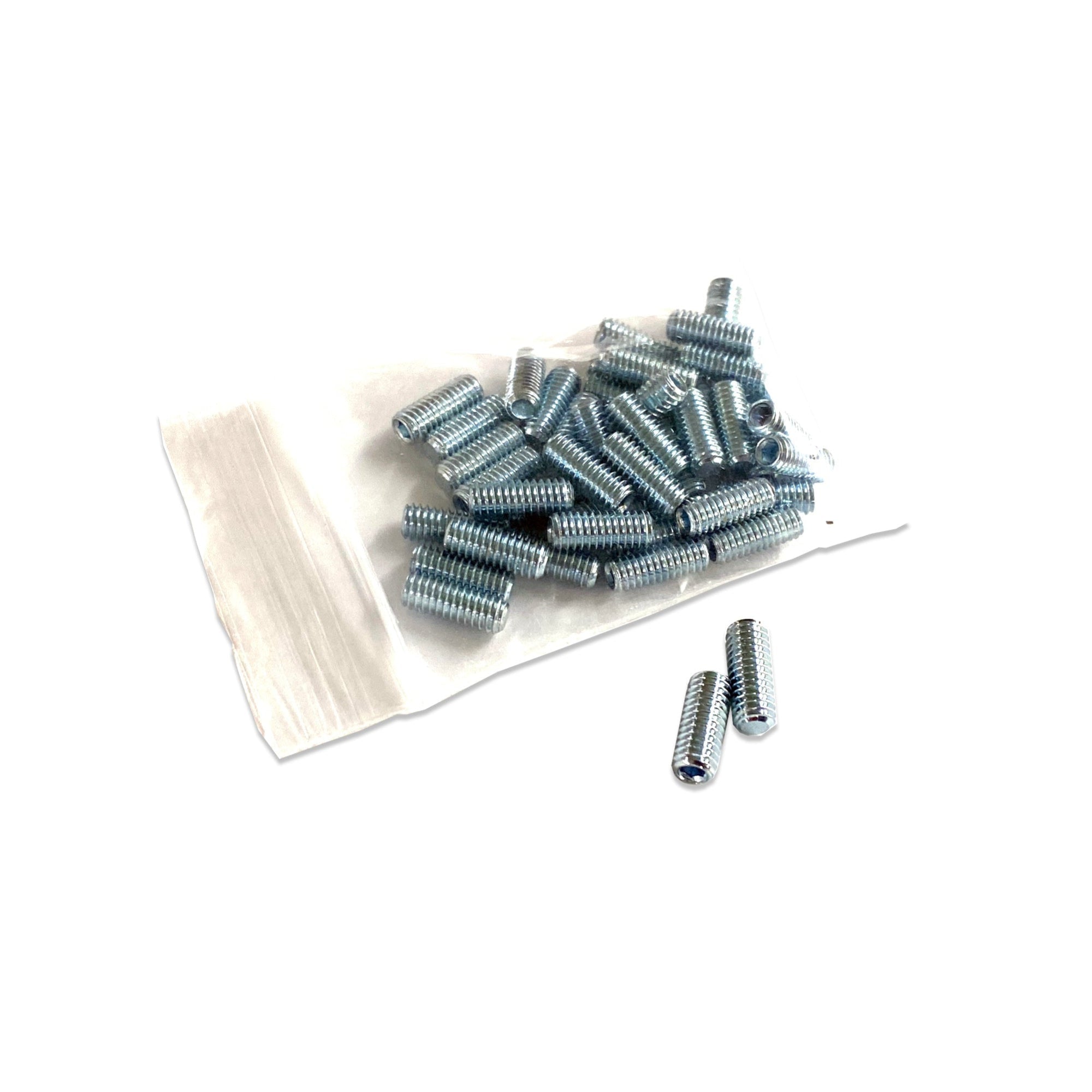

Replacement Pins
• 4mm pins fit all current Crampon pedals. Pedals with 4mm pins use a 2mm allen wrench to install or remove the pins.
• 1/8" pins fit older Crampon pedals. Pedals with 1/8" pins use a 1.5mm allen wrench to install or remove the pins.
• 'Mud' pins are 2mm longer than standard pins for extra grip (a dab of blue thread locker is recommended)
• Bag of 20 pins
If you are unsure which pedals you have, what size pins you need or which parts you need, please contact us for assistance.
