29" WHEELS / 203mm REAR / 203mm FRONT

Return of the legend. The Canfield Jedi 29. One of the most revered downhill bikes is back and faster than ever before. But big wheels are just the beginning. With a redesigned frame, linkage layout, and suspension kinematics, the all-new Jedi improves nearly every aspect of this iconic gravity machine.

** NEW BUILD SPECS **

JEDI COMPONENT OPTIONS
Fork Rockshox Boxxer ULT RC2 C3 200mm (Red or Black)
FOX 40 Float 29 Grip 2 203mm (Orange or Black)
EXT Vaia 200 (Special Order)
Shock Rockshox Vivid Coil Ultimate DH RC2
FOX DHX2 250x75
EXT e-Storia LOK V3 (Special Order)
Drivetrain &
Brakes
SRAM w/ XO1 Shifter, Derailleur, GX Cassette, TRP DH-R EVO w/203mm Rotors
Shimano w/ Saint Shifter, Derailleur, Cassette, Brakes w/203mm Rotors
Cranks Canfield Downhill Cranks
Chainring e*thirteen 34t Round
Wheels Spank/Hadley DH Custom Built Wheelset
Tires Maxxis DHF 2.5 & Maxxis Assegai 2.5
Seatpost Race Face Chester
Saddle SDG Radar
Handlebar e*thirteen Base 800mm
Stem Canfield Special Blend DH
Seat Clamp Canfield Black Forged
Chain Guide MRP

*Photos are for illustration purposes only. Actual build spec not pictured.
**Complete bikes ship as frame and parts. Full assembly required.

FEATURES

  • 29” Downhill Race
  • Formula 1 Suspension
  • Vertical Rear Travel: 203mm / Horizontal Rear Travel: 19mm (horizontal) / 64mm (effective)
  • External cable routing
  • Adjustable pulley wheel guide for optimal chain management
  • One-piece CNC upper and lower links
  • Custom chainstay protector (not shown)
  • Custom removable rear fender (modifies most front fenders)
  • Custom MRP G5 bashguard
  • Replaceable rear derailleur hanger
  • Seat Clamp included
  • Available in Medium, Large, and X-Large

FRAME SPECS

  • 7000 series aluminum
  • Shock Specs: Metric: 250mm x 75mm (203mm)
  • Recommended fork length: 200mm
  • Headset: 44mm upper/56mm lower
  • Bottom bracket: 83mm threaded
  • Max. chainring size: 38t
  • Crank Length: 155mm (MD), 160mm (LG), 165mm (XL)
  • Seatpost: 30.9mm
  • Seatpost clamp: 35mm
  • Rear dropouts: 157mm x 12mm, Canfield axle included
  • 20mm Max pivot bearings
  • ISCG 05
  • Brake mount: PM 180mm
  • Max rotor size: 223mm +
  • Maximum seatpost insertion: 133mm (M), 143mm (L), 153mm (XL)

GEO & SIZING

SIZE MEDIUM LARGE XL
Top Tube Length (Effective) 610mm 636mm 661mm
Reach 450mm 475mm 500mm
Front Center 825mm 852mm 877mm
Stack 640mm 644mm 644mm
Standover 711mm 711mm 711mm
Wheel Base 1,252mm 1,279mm 1,304mm
Head Tube Angle* 62.5° 62.5° 62.5°
Head Tube Length 115mm 120mm 120mm
Seat Tube Angle (Effective) 76° 76° 76°
Seat Tube Angle (Actual) 67° 67° 67°
Seat Tube Length 405mm 405mm 405mm
Chainstay Length (unsagged) 427mm 427mm 427mm
Chainstay Length (sagged) 443mm 443mm 443mm
Bottom Bracket Height (Approximate)** 351mm 351mm 351mm
Bottom Bracket Drop 24mm 24mm 24mm
Rider Height*** 5'5"-5'11" 5'9"-6'3" 6'1"-6'6"

*Geo based on 601mm axle-to-crown fork
**Based on 2.5 tires and 601mm axle-to-crown fork
***Recommendation only. Sizing depends on body type, personal preference, and riding style.

RECOMMENDED SPRING RATES*

Spring Rates Chart

*Ohlins coils use non-standard increments

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
JSchiers
Jedi 29 DH: Unstoppable confidence at speed!

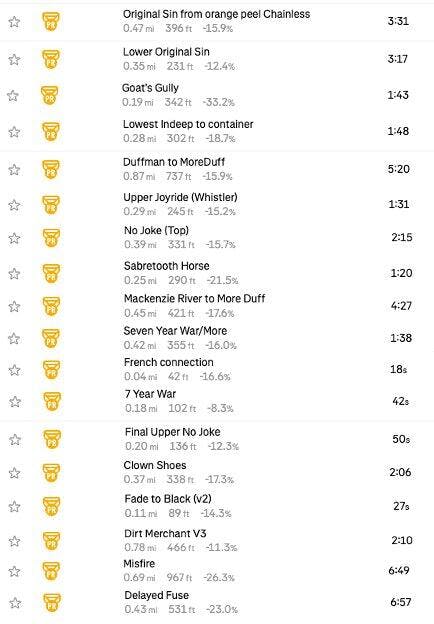

Incredible bike - I just spent 6 days on my new Jedi in the Whistler bike park on my annual trip. Took possession of it in Whistler (thank you to Ty and Eric @ East Fork Bikes in Pocatello). Quick setup and I was on the lift - what a difference the Jedi made, smooth and comfortable in technical sections, boosty and steazy off the jumps. I found myself moving faster than ever and feeling more in control - setting PRs on all the park trails I've ridden for years. The rear suspension just disappeared while I was riding, allowing me to focus on what was ahead instead of what was happening behind me. My riding group called the Jedi "crash-proof" based on how fast and stable I was riding, as if the force really was with me.

Canfield worked with the bike shop to accommodate my height in the bike build out - I'm a tall guy and getting the right setup upfront goes along way to making the bike feel right. Really appreciate the service, consideration, and the incredible bike.

Hey JSchiers,
This is epic! Sounds like you and the Jedi clicked right away. Stoked to hear it’s helping you set PRs and stay in control while pushing the pace—that’s exactly what it’s built for. Huge thanks for trusting us to get the fit dialed, sharing your ride story, and repping Canfield out on the trails!

P
Peter Maccaroni
Best DH bike

The best DH bike I live this bike everything about it makes me smile and give me joy. I haven’t had the chance to go and smash some laps or shrelp any corners yet but I can tell that this is going to be the best beast of a bike I have ever ridden.

Hey Peter,
Love the stoke! Can’t wait to hear how you smash those laps and shrelp those corners—sounds like the Jedi 29 is already living up to its name and reputation. Ride it hard and enjoy every smile!

C
Chris Armstrong
Great downhill bike!

After doing my review of current downhill bikes, I decided to get a Jedi 29, and it was a great choice! Fast, playful, and has handled everything that Whistler could throw at it. I willingly recommend a Jedi 29 to anyone looking for a new downhill bike.

Hi Chris

Thank you for your review! We are glad to hear that the Jedi 29 has exceeded your expectations at Whistler Bike Park. The Jedi 29 is known for its speed and playfulness, making it a great choice for trails like Original Sin, one of my favorite trails. Happy riding!

S
Spencer Young
The Jedi 29 is Cheat Mode

I've owned various long travel bikes including DH bikes from mainstream brands but the Canfield Jedi has always been a dream bike of mine. I bought it without a test ride (risky) after thorough online research. I was concerned that it might be one of those "never meet your hero's" situations... but fortunately I have been blown away with how this bike rides. In combination with the Ohlins shock and Manitou Dorado fork, this bike has been next level. I am at various bike parks 2-3 days per week all season long and have put hundreds of miles on my Jedi this year and can now confidently say that this bike is like a cheat mode for every trail. It jumps beautifully, finds grip everywhere, and absolutely plows through chunk and rock gardens. I could not be happier with how the bike performs and my assessment of it is that the Jedi is on a completely different level than the other DH bikes out there. The way a bike feels is more than simply the sum of geometry and specs and this bike is dialed.

I would also like to say that working with Canfield to get the bike was a pleasure from start to finish. Top notch customer service. Shipping was fast and they let me swap cranks and fork in to the package. They even pressed my headset in for me before shipping. At this point I am interested in migrating my trail bike and enduro bike slots over to being Canfield as well.

Hey Spencer,
This kind of feedback seriously makes our day—thank you! Stoked beyond words that the Jedi lived up to the dream and is absolutely crushing it for you. From grip and jumps to chunk and chaos, sounds like it’s doing exactly what it was built to do.

Really appreciate the shoutout to the team too—glad we could get everything dialed and shipped out quick. And if a full Canfield fleet’s on your radar… we’ll be ready when you are.

Cheers to more park laps and full sends ahead!

S
Scott Boggs
Fast and Furious

The Jedi flattens everything in its path. It has literally made me 20% faster through the chunkiest PNW trails. I now have obscene levels of confidence. Suspension is killer, build is bombproof, and Lance has been on the other end of every phone call. Would buy again, no question.

Hey Scott,
That’s an awesome review! Stoked the Jedi’s helping you crush those chunky trails and boost your confidence—that’s exactly what we wanted. Really glad Lance could help out whenever you needed. We’re super happy to have you riding with us, sending it hard every time. Keep smashing it!

a
aaron braggs

The Jedi is a machine. It is the best iteration to date of the Jedi. The suspension design is able to run WFO! Pick your compression settings to suit your style. It’s not afraid to jump, as a racer just carry your speed. The bb is low so run the bars the same and it will chase corners all day 🤘

Hi Aaron,
That’s exactly what the Jedi was built for — full throttle, big sends, and carving corners like it’s on rails. Stoked you’re pushing it to the limit. Keep charging and keep sending!
