29" WHEELS // HARDTAIL // 150MM FRONT
The original hardcore hardtail. Handcrafted in small batches, the Canfield Bikes Nimble 9 is a steel hardtail built to get rowdy. Combining the revered ride quality of 4130 chromoly steel with aggressive all-mountain geometry, the Nimble 9 challenges preconceptions of mountain bikes with both big wheels and rigid rear-ends.
FRAME FEATURES
- 29″ All Mountain
- 4130 chromoly steel
- Radial-bent seat stays for vertical compliance
- Increased reach and shorter seat tube
- 66° head angle (w/ 150mm fork)
- Recommended fork length: 140mm - 160mm
- Custom sliding Boost 148mm x 12mm rear dropouts, axle included
- 73mm BSA Threaded BB
- 30.9mm seat post
- 34.9 or 35mm clamp size
- Adjustable 16.33“ – 16.93” chainstays
- Brake mount: IS 160mm
- Singlespeed-able
- Stealth cable routing
- Two water bottle bosses
- Includes dropouts/derailleur hanger, rear axle and hardware
- Max. chainring size: 34t round / 32t oval
- Max. seatpost insertion: 200mm(S), 235(M), 275(L), 320(XL)
Full assembly is required on complete bikes.
Canfield Nimble 9 Geo
(Based on 150mm fork, 563mm Axle to Crown)
| Size | S | M | L | XL |
|
Top Tube Length (Effective)* |
570mm |
597mm |
625mm |
652mm |
|
Reach |
425mm |
450mm |
475mm |
500mm |
|
Stack* |
634mm |
638mm |
648mm |
656mm |
|
Standover Height* |
745mm |
780mm |
800mm |
830mm |
|
Seat Tube Length |
370mm |
405mm |
445mm |
490mm |
|
Wheel Base* |
1156mm |
1183mm |
1212mm |
1241mm |
|
Head Tube Angle |
66° |
66° |
66° |
66° |
|
Seat Tube Angle (Effective) |
77° |
77° |
77° |
77° |
|
Chainstay Length |
415-430mm |
415-430mm |
415-430mm |
415-430mm |
| Bottom Bracket Height | 325mm | 325mm | 325mm | 325mm |
|
Bottom Bracket Drop |
50mm |
50mm |
50mm |
50mm |
|
Head Tube length |
100mm |
105mm |
115mm |
125mm |
*Geo based on 150mm travel fork. Static measurement (not sagged).
|
SIZE
|
S |
M
|
L
|
XL
|
|
RIDER HEIGHT
|
5'2"-5'7"
|
5'5"-5'11"
|
5'9"-6'3"
|
6'1"-6'6"
|
*Photos are for illustration purposes. Final production details may vary.
Customer Reviews

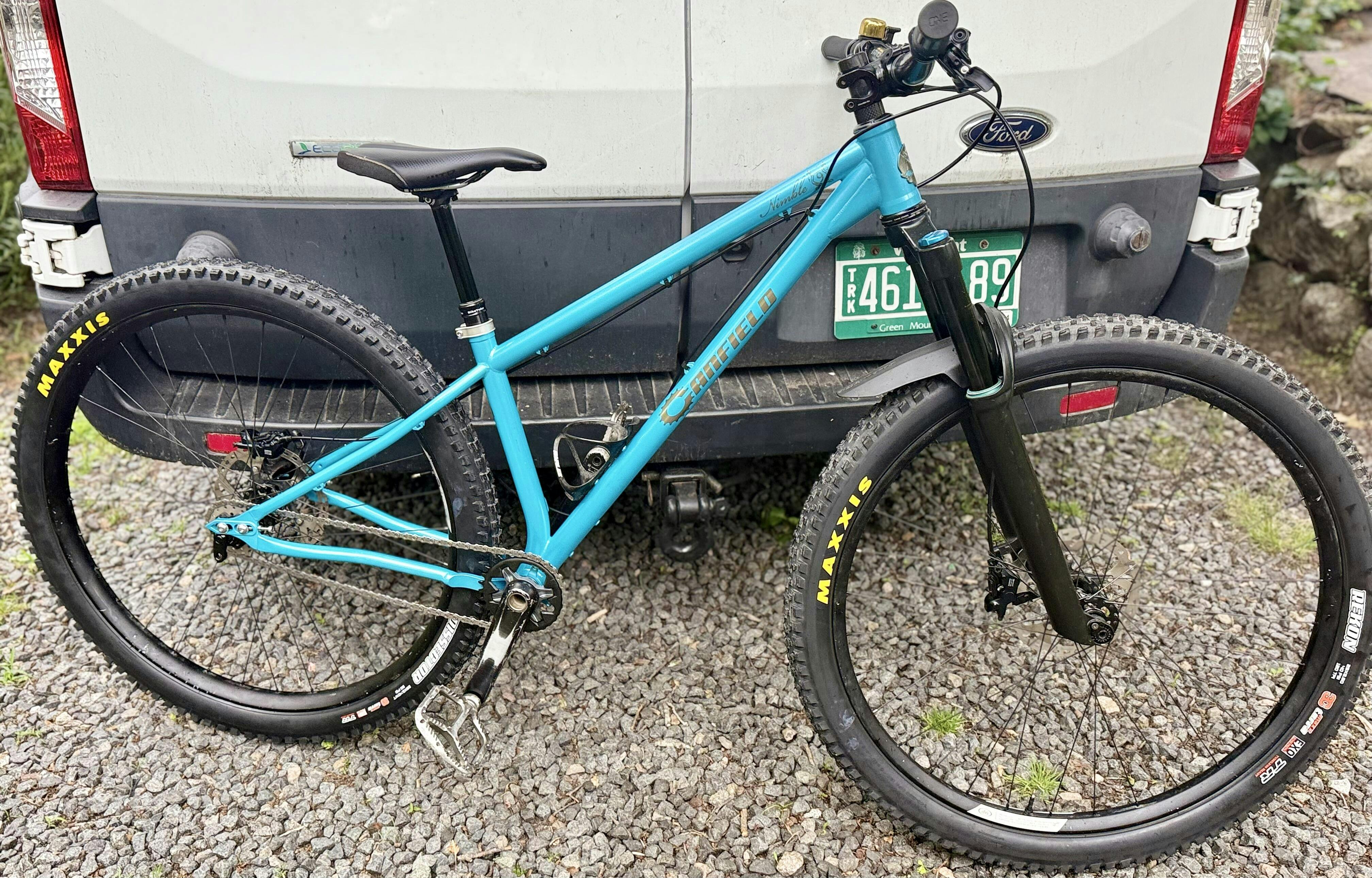

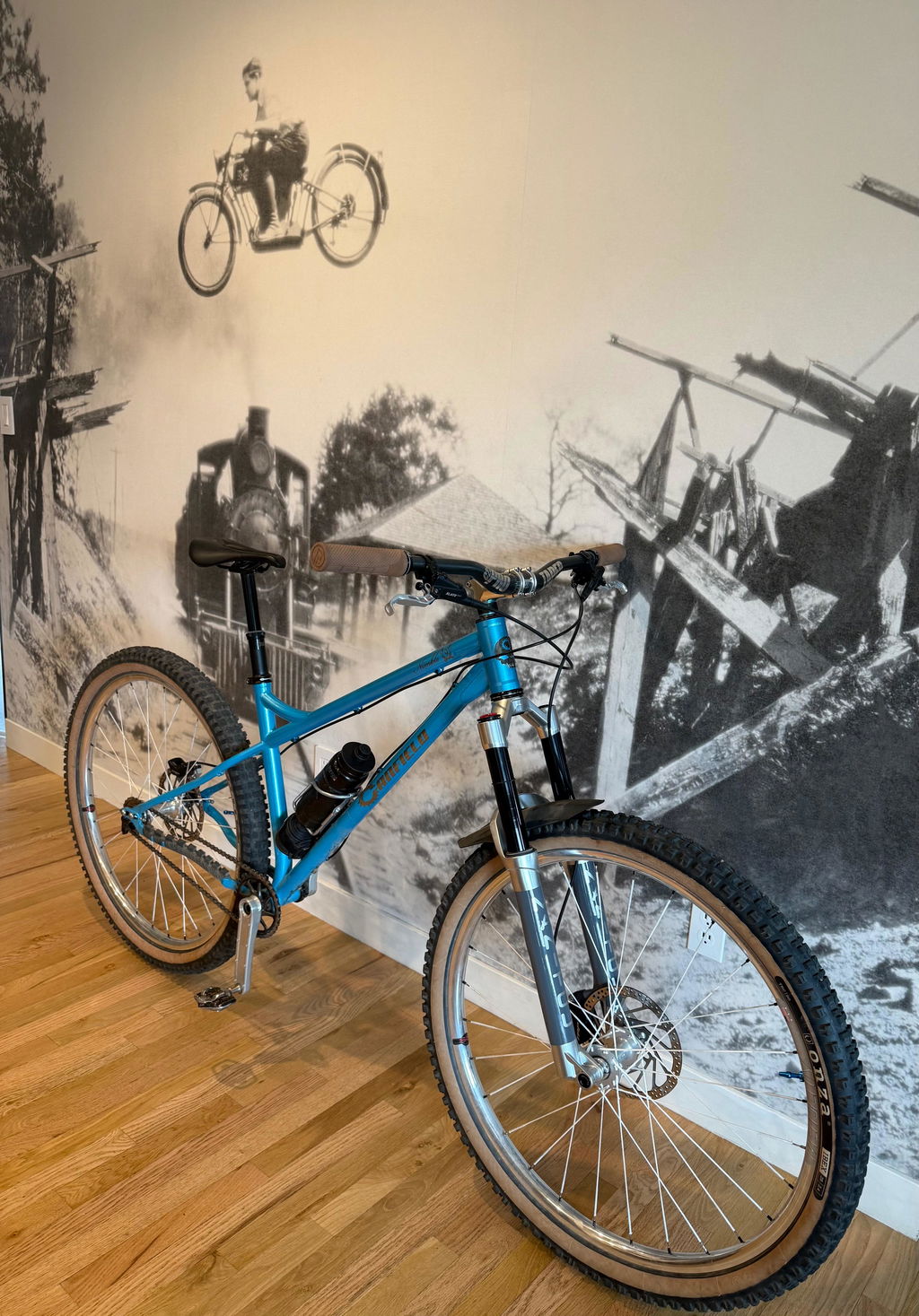

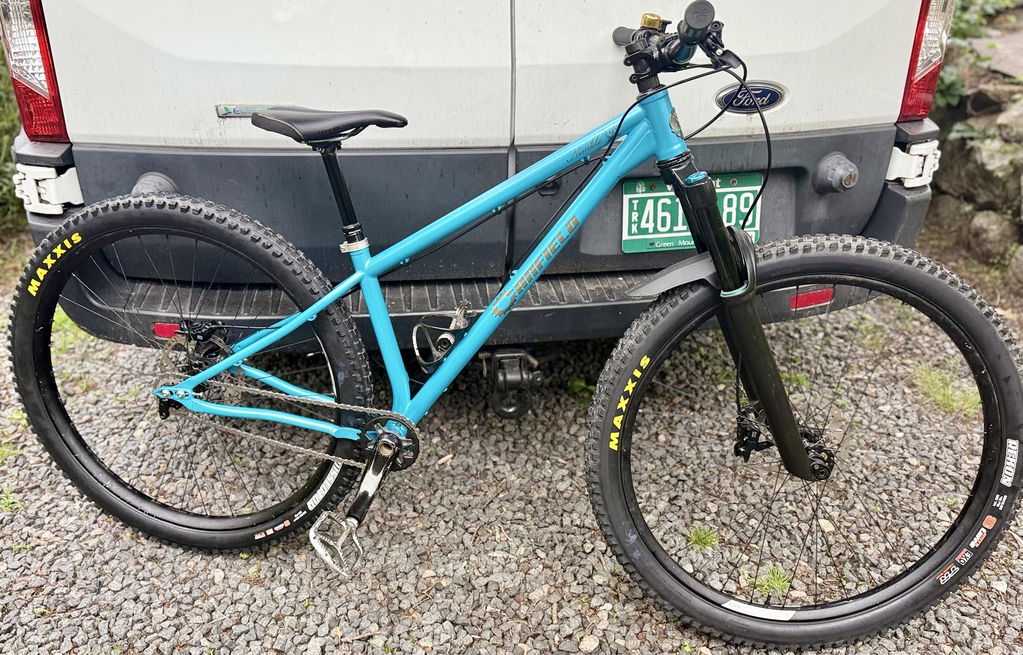

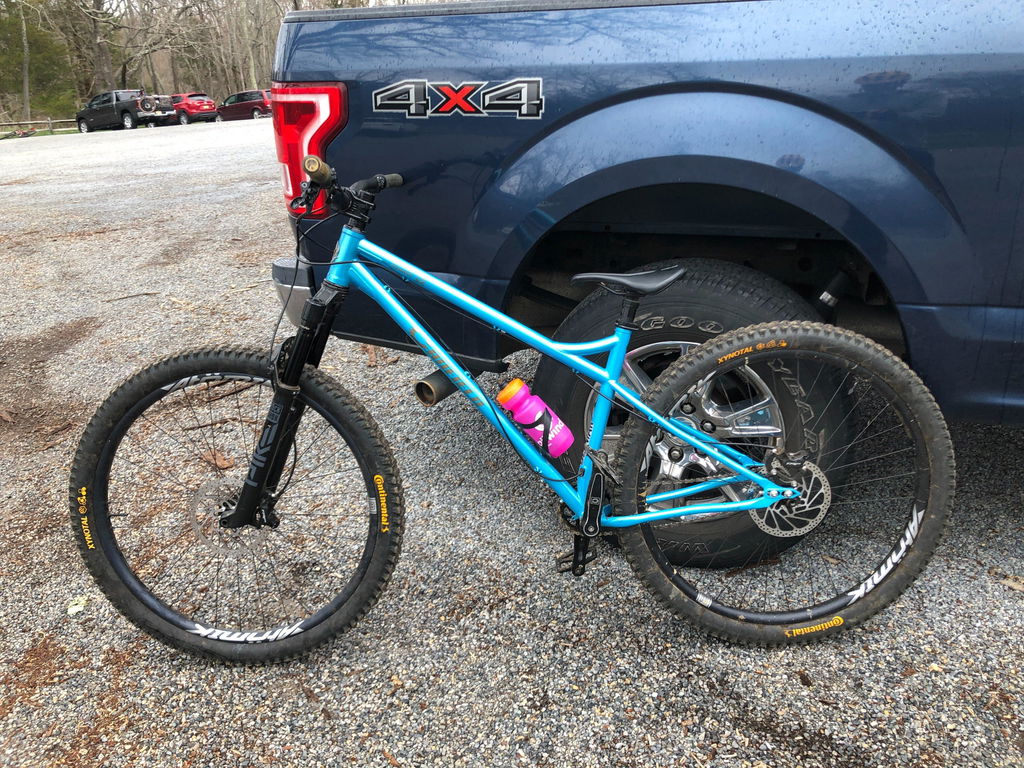

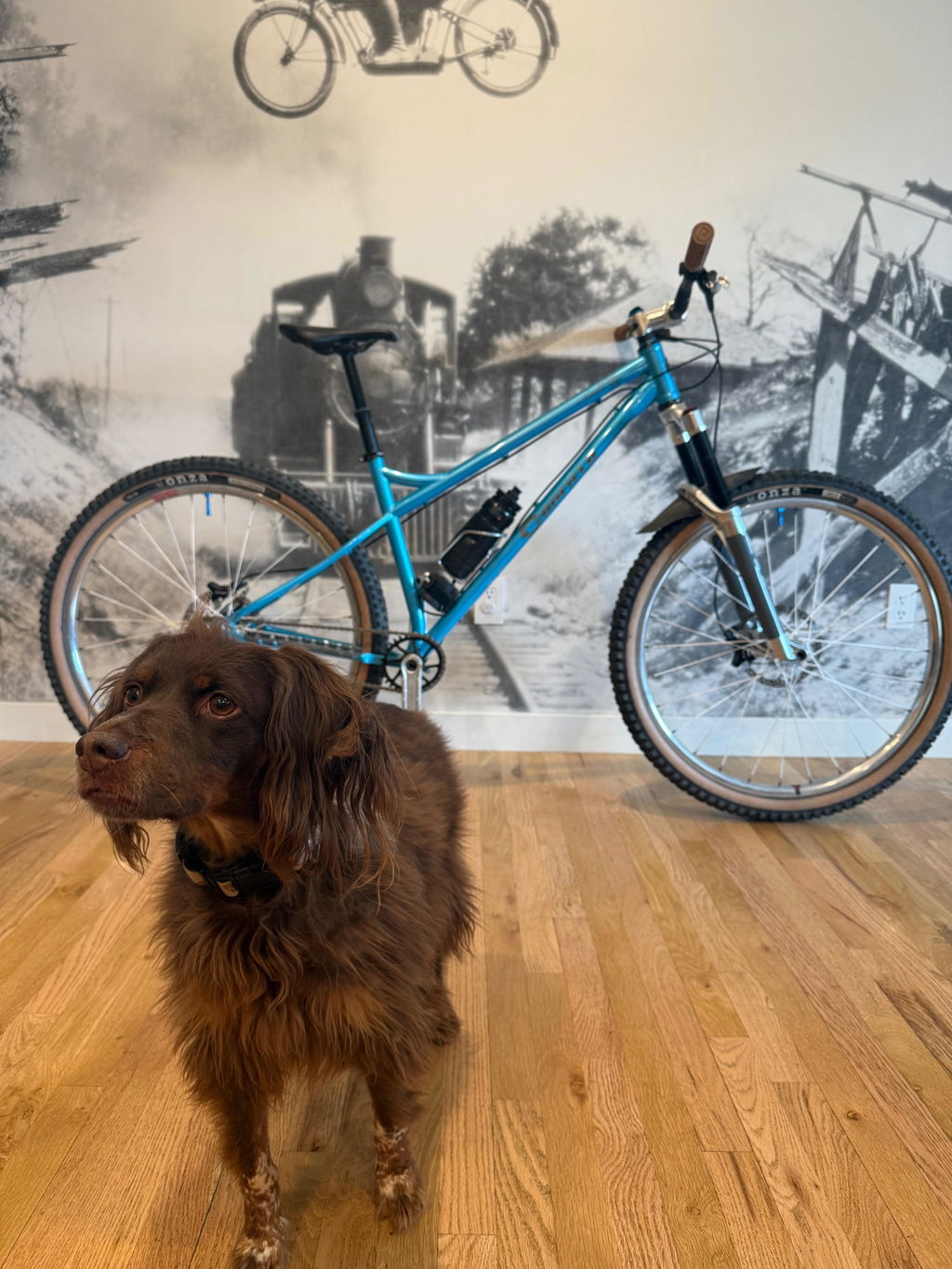

Great very happy

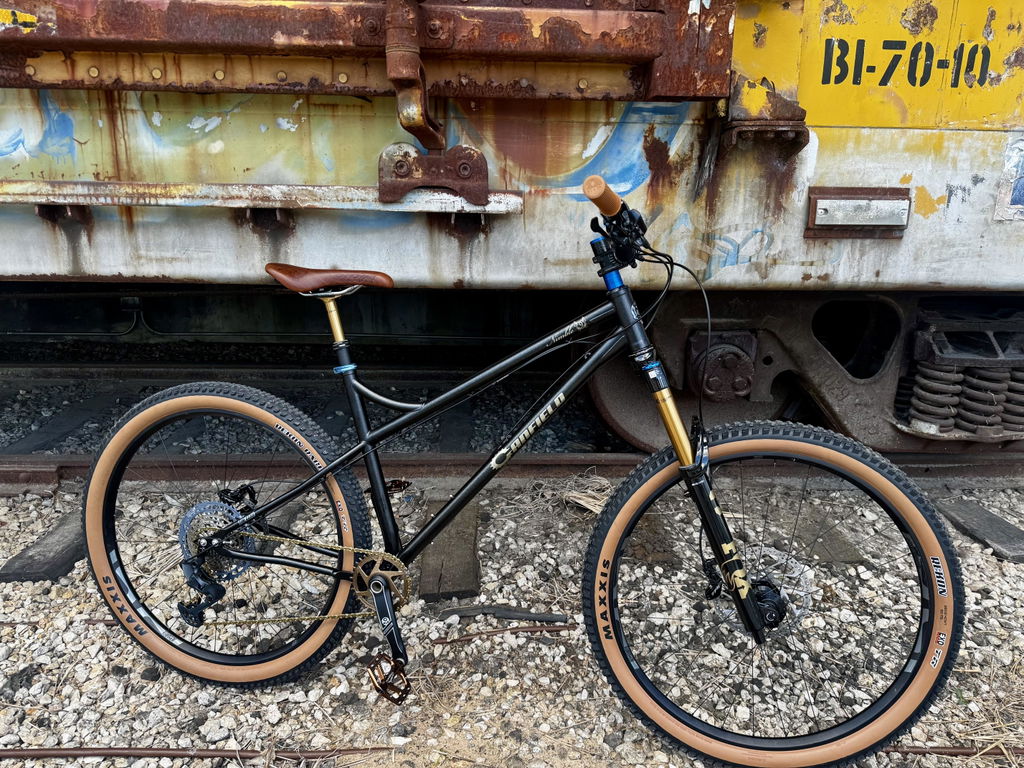

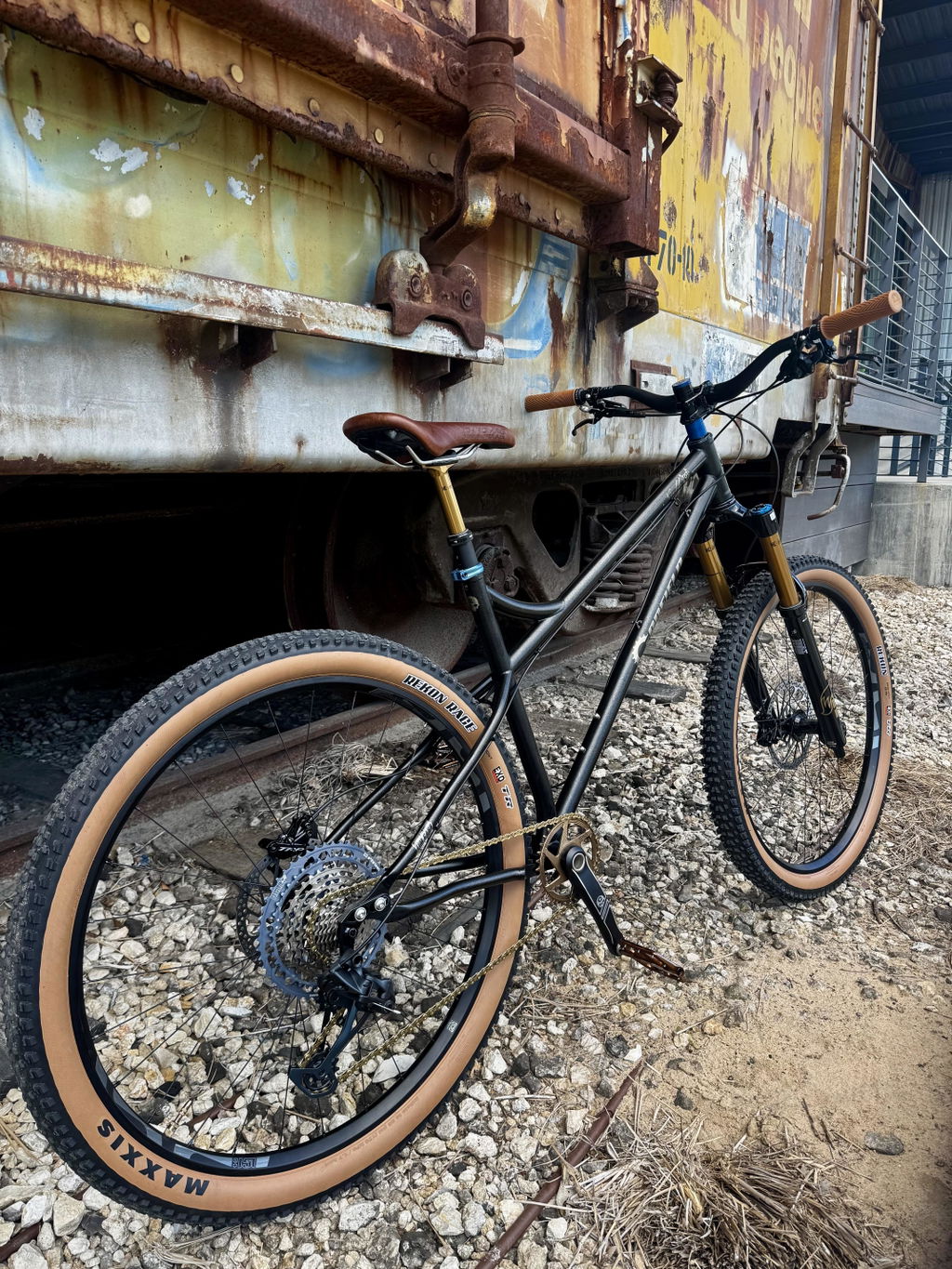

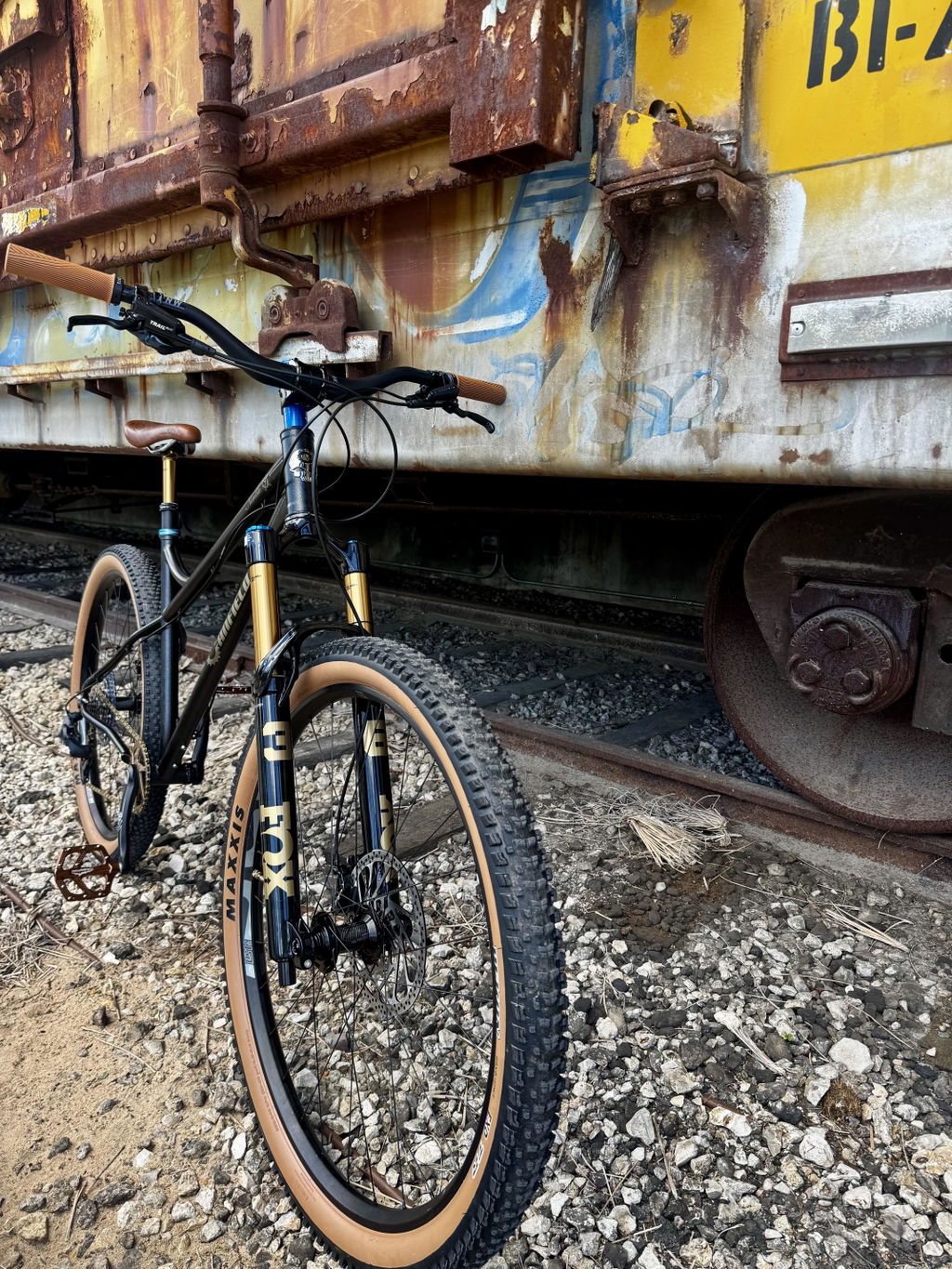

Beautiful frame! The galaxy black looks amazing in the sun. Rides nice and smooth. I love how capable it is without having overly gnarly geo. Did a quick build with parts I already had, but I can’t wait to try it out fully built up as. I want it!
Great company fantastic bike I ride it more than my enduro rig

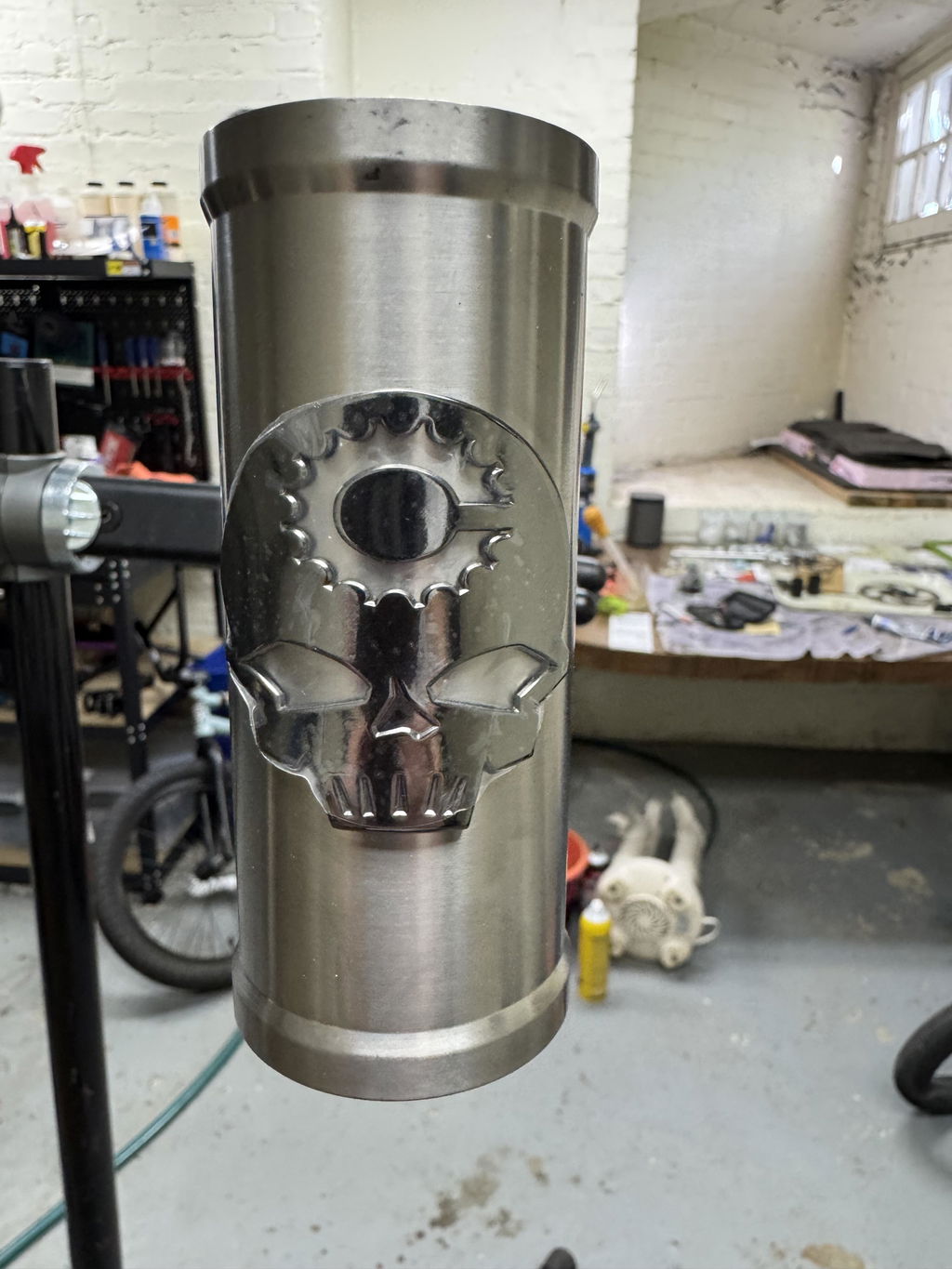

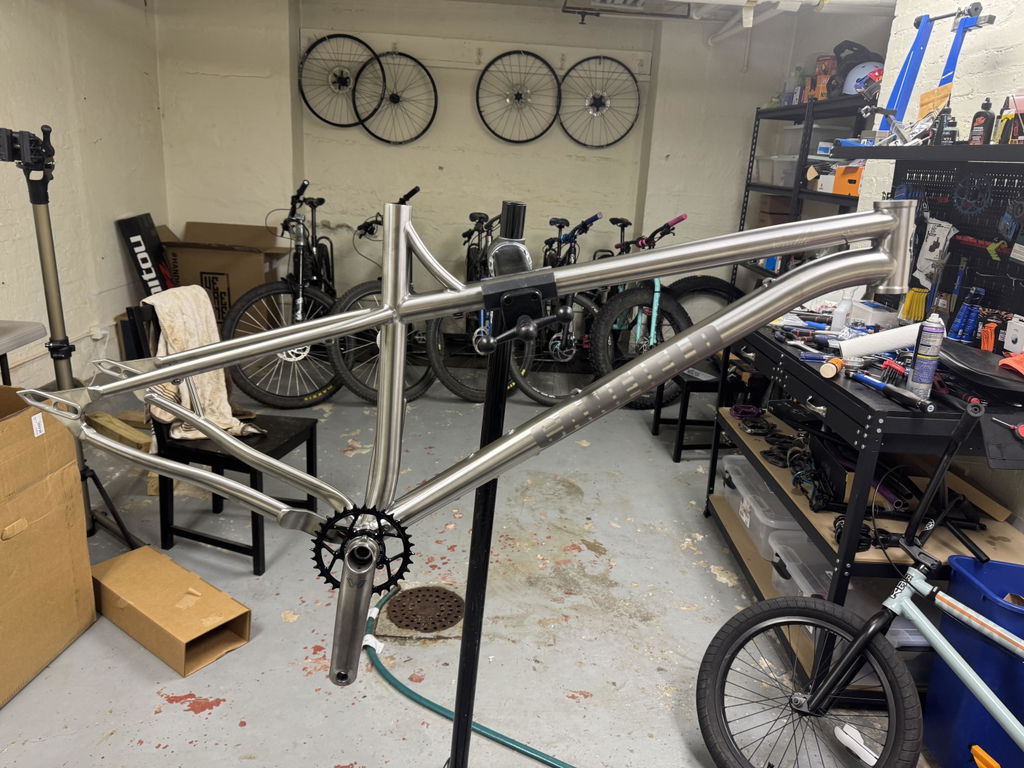

The frame is an absolute work of art!! I love riding this bike… quick responsive comfortable and fast!
